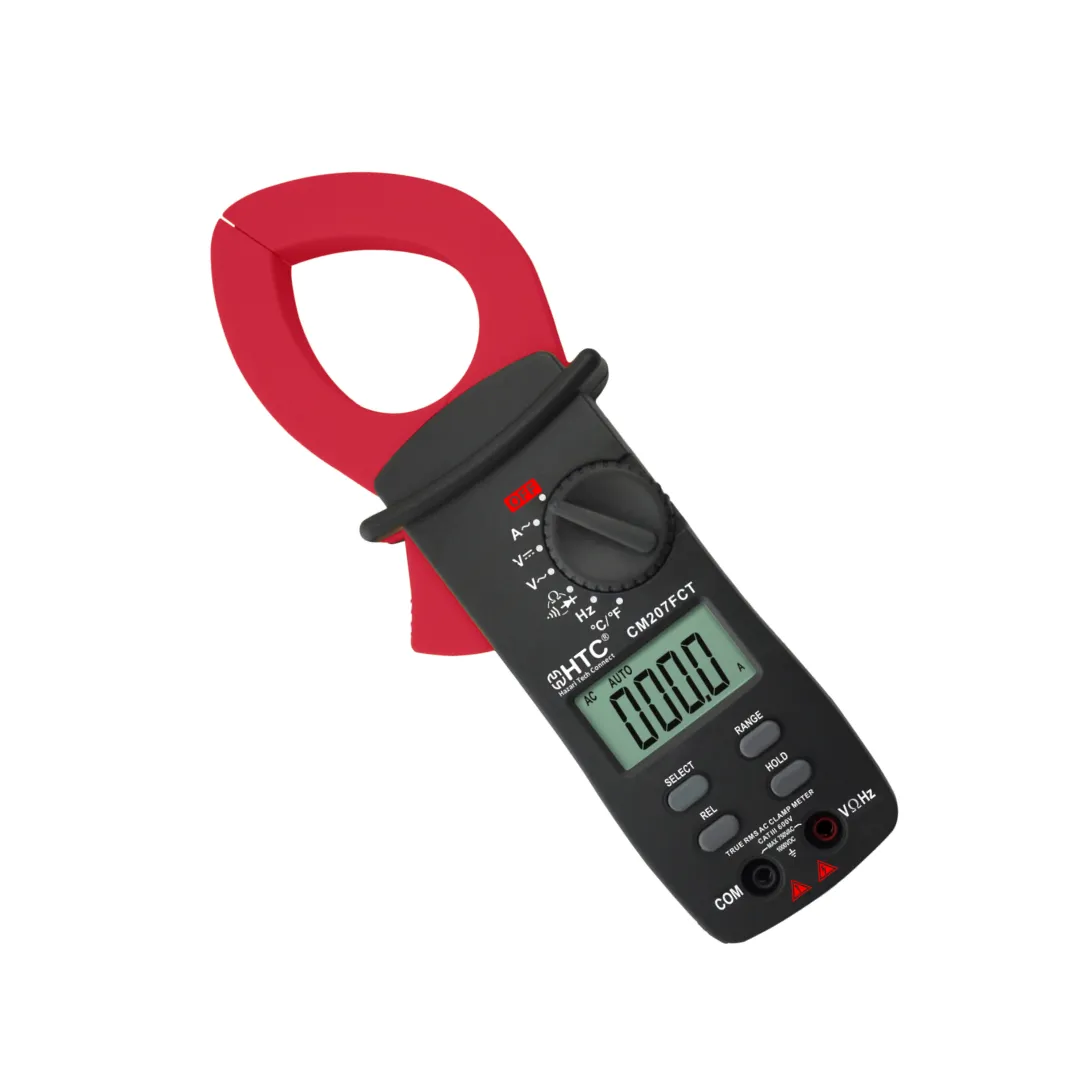

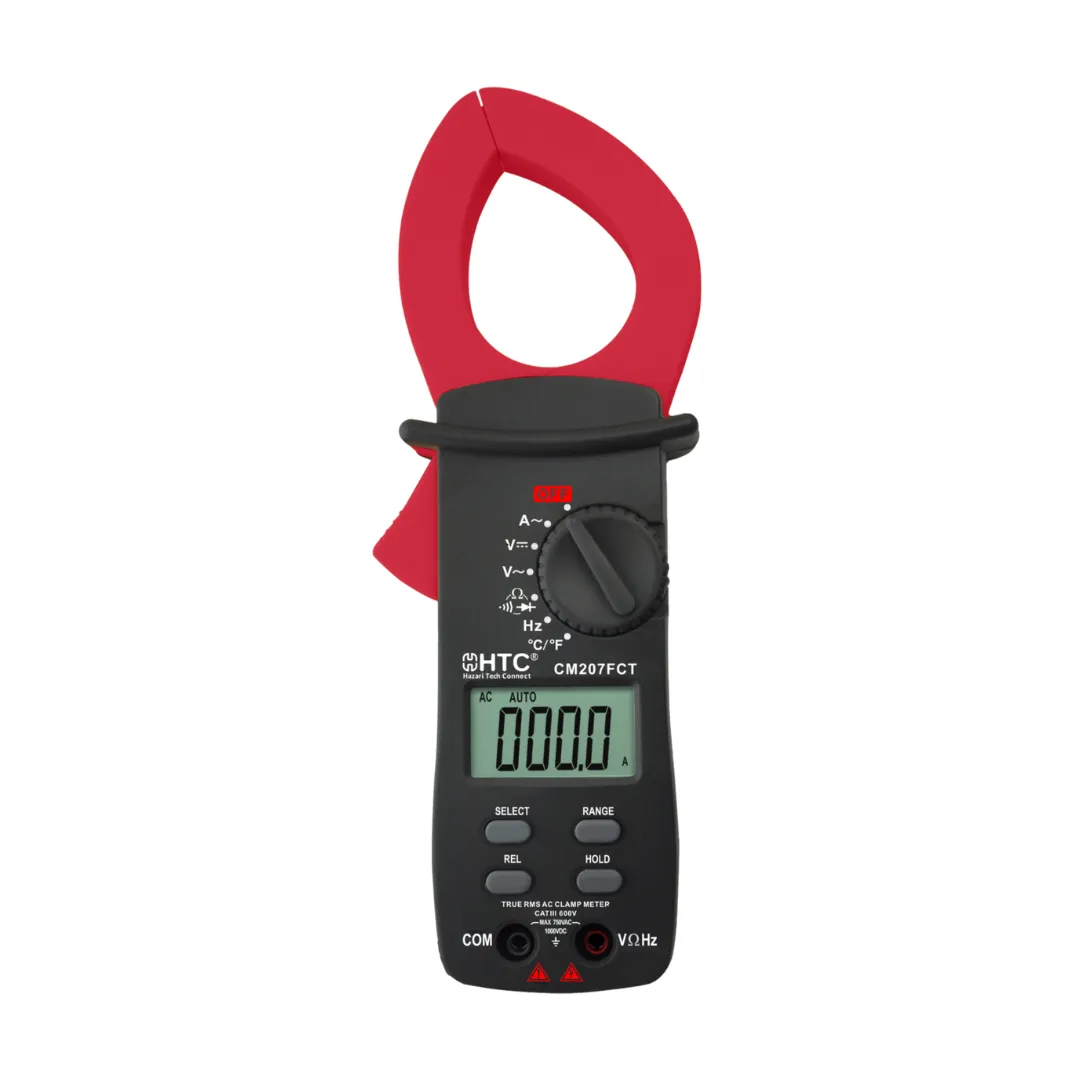

1000A AC DIGITAL CLAMP METER with Temp ( HTC – CM -207FCT )

Description

The HTC CM‑2070FCT Digital Clamp Meter is a rugged, feature-rich handheld instrument engineered for electricians, HVAC technicians, maintenance professionals, and industrial diagnostics. It combines True RMS measurement with a wide range of measurement modes including AC current, AC/DC voltage, resistance, capacitance, frequency, temperature, diode and continuity testing, as well as non-contact voltage detection—making it an all-in-one solution for field and workshop applications.

At its core, the CM‑2070FT utilizes a 3¾-digit, 4000-count display, ensuring precise and detailed readings. The 18 mm backlit LCD offers excellent visibility under varied lighting conditions, while the integrated clamp torch light boosts illumination around live conductors, connectors, or panel interiors

Clamp operation enables AC current measurement up to 1000 A, with a jaw aperture of 52 mm to accommodate a wide range of conductor sizes. Measurement accuracy is ±2.0% reading +5 digits within the 40 A range, and ±4.0% +10 digits for currents above 600 A, enabling safe, non-invasive current profiling without interrupting circuits.

The meter supports DC voltage up to 1000 V with resolution from 0.1 mV to 1 V, delivering ±0.5% +5 digits accuracy at lower ranges and ±1.0% +5 digits at full scale. AC voltage spans up to 750 V RMS, with ±1.5% +5 digits (0–400 V) and ±1.0% +5 digits accuracy at maximum range. Its True RMS detection ensures accurate measurement of distorted or non-sinusoidal waveforms across both voltage and current modes.

Resistance measurement ranges from 400 Ω up to 40 MΩ, with resolution ranging from 0.1 Ω to 10 kΩ. Accuracy is specified as ±0.8% +5 digits in lower ranges and up to ±1.2% +5 digits at higher resistance limits. The built-in continuity test produces an audible buzzer when resistance drops below approximately 50 Ω ±10 Ω.

When it comes to capacitance, users can measure from 4 nF to 40 mF, with fine resolution starting at 1 pF. Accuracy varies by range, from ±5.0% +20 digits in the lowest capacitance range to ±2.5% +5 digits at mid-range settings. Frequency measurement stretches from 10 Hz up to 10 MHz, with resolution from 0.01 Hz to 10 kHz, and accuracy of ±0.5% +4 digits on lower scales.

Advanced functionality includes temperature sensing from −40 °C to 1000 °C, using a Type-K thermocouple with 1 °C resolution and ±1.0% +5 digits accuracy below 400 °C, and ±1.5% +15 digits at higher ranges. Non-contact voltage (NCV) detection is built into the unit for immediate live-wire warning; operation is automatic when the rotary switch is set to NCV mode, alerting users with visual and audio feedback.

Operational features such as Data Hold, Relative Value (REL) measurement, auto/manual ranging, and auto power‑off (~15 minutes idle) enhance ease of use. A low battery icon and “OL” overload indication help prevent misuse and ensure safety. Sampling occurs at roughly three readings per second, providing fast yet stable updates. The protective ABS housing supports CAT III 600 V safety compliance, making it reliable in both industrial and residential environments.

Weighing just ~280 g (including two AAA batteries) and measuring 123 × 270 × 35 mm, the CM‑2070FT is ergonomic and portable—perfect for service technicians working in tight spaces. The meter includes test leads, a TP‑04 temperature probe, soft carrying case, manual and batteries, making it ready for immediate deployment straight out of the box.

Ideal Applications:

• Non-invasive measurement of AC current in power distribution systems

• Diagnostic mastering of voltage, resistance, capacitance, frequency, and temperature

• Safety audits with NCV detection in panels and wiring

• HVAC system diagnostics by combining current and temperature profiling

• Electrical maintenance, repair, and preventive inspection in both industrial and residential environments

In conclusion, the HTC CM‑2070FCT Digital Clamp Meter is an all-in-one diagnostic tool that merges precise measurement capabilities with robust functionality. Its True RMS clamp, extensive measurement range, NCV detection, and field-oriented lighting make it a top pick for electricians, technicians, and service professionals seeking accuracy, safety, and convenience in their workflow.
