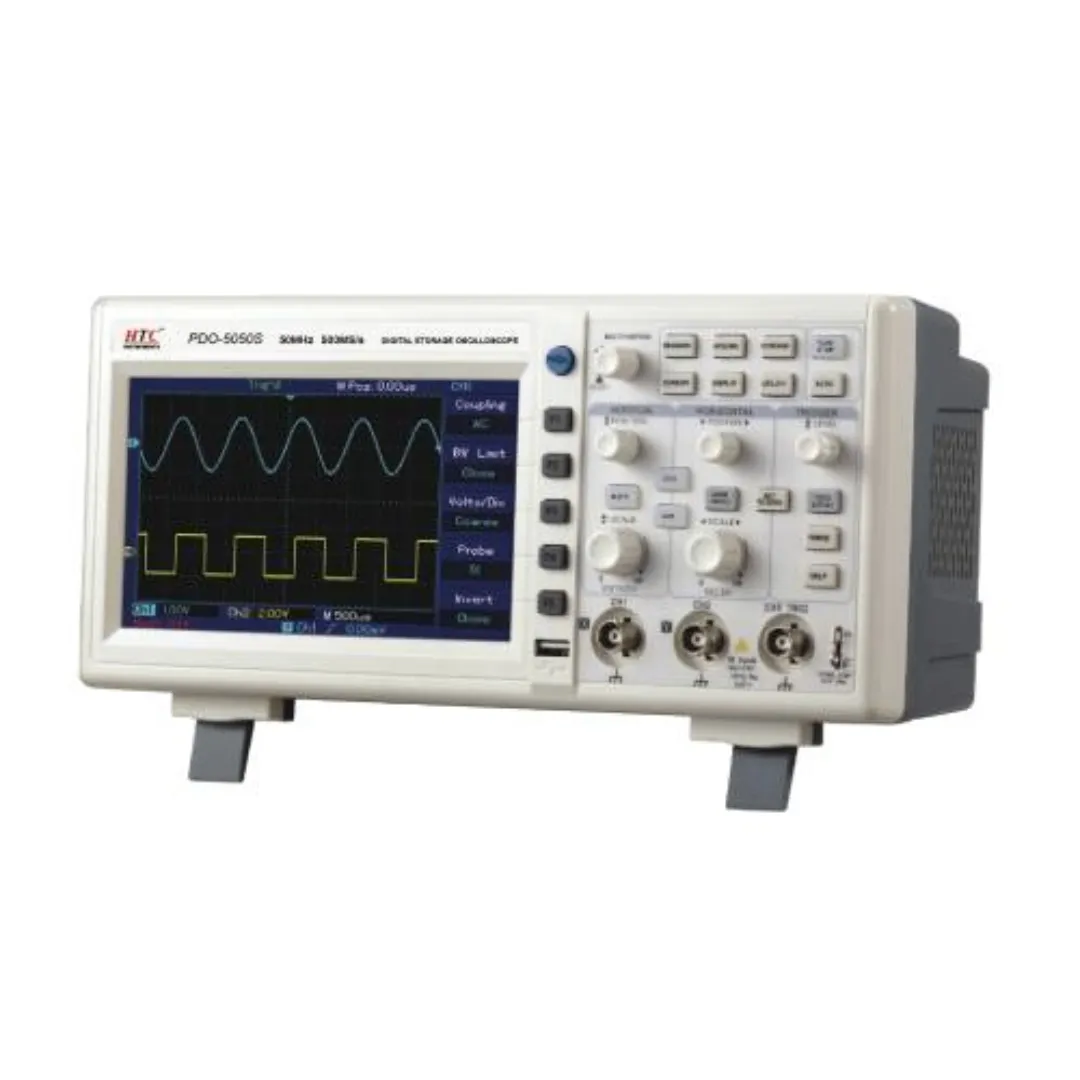

50 MHz Dual Channel Digital Oscilloscope ( HTC – PDO-5050S )

Description

HTC PDO-5050S Digital Storage Oscilloscope — Compact Precision, Powerful Features

The HTC PDO-5050S is a dual-channel digital oscilloscope combining 50 MHz bandwidth with a real-time sampling rate of 1 GS/s, offering high-performance signal acquisition and analysis in a compact benchtop instrument—ideal for electronics professionals, educators, and engineers.

Core Performance Features

• Bandwidth: Each channel handles up to 50 MHz, making it suitable for a broad range of electrical diagnostics and waveform analyses.


• Sampling Rate: Captures signals at 1 GS/s (gigasamples per second) in real-time mode, ensuring accurate rendering of fast-changing waveforms.

Easy-to-Use Triggering System

• Edge Trigger: Available for rising, falling, or both types of signal transitions.

• Pulse-Width Trigger: Set conditions for pulse duration (e.g., wider or narrower than a threshold) over a range of 20 ns to 10 s.

• Trigger Sensitivity: ≤1 division, with precise control via internal or external trigger levels (±5 divisions internally; ±3 V or ±15 V externally).

• Pre-trigger / Delay Options: Adjustable from 80 ns to 1.5 s depending on model, allowing full waveform capture around trigger events.


Powerful Measurement & Analysis Tools

• Cursor Modes: Manual or trace mode to measure voltage difference (ΔV), time difference (ΔT), or compute frequency (1/ΔT).

• Automatic Waveform Metrics: Calculates peak, amplitude, maximum, minimum, top, bottom, mean, RMS, overshoot, preshoot, frequency, cycle, rise/decay time, pulse width, duty cycle, and delays—all displayed instantly.

• Arithmetic Operations: Perform +, – , ×, ÷, and percentage calculations on waveform data.

• Storage: Save up to 20 waveforms and 20 instrument setups for quick recall.

• FFT Analysis: Analyze frequency content using Hanning, Hamming, Blackman, or rectangular window modes, with 1,024 sampling points.

• Lissajous Figures: View phase relationships with ±3° accuracy.


Intuitive Display & Workflow

• High Resolution LCD: Vibrant 5.7-inch color display presenting waveform details in full clarity.

• Classic Controls: Analog-style knobs for scale and position per channel mean quick, intuitive adjustments with minimal learning time.

• Auto Setup: One-touch AUTO key configures waveform display and parameters automatically for rapid testing.


Flexible Connectivity & Power

• USB Storage-Compatible: Plug in a compatible USB drive to save waveforms and settings instantly; also functions with computer connection.

• Interfaces: Includes RS-232, USB (main and sub), and RJ45 LAN for remote control and data access in lab networks.

• Power Supply: Global 100–240 VAC, 45–440 Hz, CAT II rated; compact at less than 30 VA power consumption.

• Built-in Safety: Fused power board with F1.6AL 250 V fuse ensures safe operation.

Compact Form Factor & Practical Setup

• Dimensions: Width 320 mm × Height 150 mm × Depth 130 mm—compact enough for tight bench spaces.

• Weight: 2.5 kg (unit), 4.0 kg including packaging—light yet sturdy.


Included Accessories

Comes with passive probes, power cable, instruction manual, and optional driver/software package—providing everything needed to begin testing immediately.

Why Choose the PDO-5050S?

1. Professional Signal Insight
   High bandwidth and fast sampling deliver accurate, clear waveform capture—even in fast, complex electronics systems.

2. Rich Trigger & Analysis Toolkit
   Flexible triggering, comprehensive measurements, FFT, and math functions equip you for almost any signal scrutiny.

3. User-Centric Design
   Familiar controls, auto setup, and easy-to-read display help both rookies and experts get the job done faster.

4. Seamless Workflow Integration
   USB and LAN support plus waveform storage streamline data management on the bench or in a networked lab.

5. Portable & Practical
   Compact build, low-power operation, and included accessories make it convenient to use in workshops, classrooms, or field labs.

Summary Table: PDO-5050S at a Glance

The HTC PDO-5050S DSO balances powerful features with user-friendly design making it an excellent fit for professionals, educators, and hobbyists seeking reliable, adaptable waveform analysis in a compact instrument.
