Anemometer ( HTC – AVM-06 )

Description

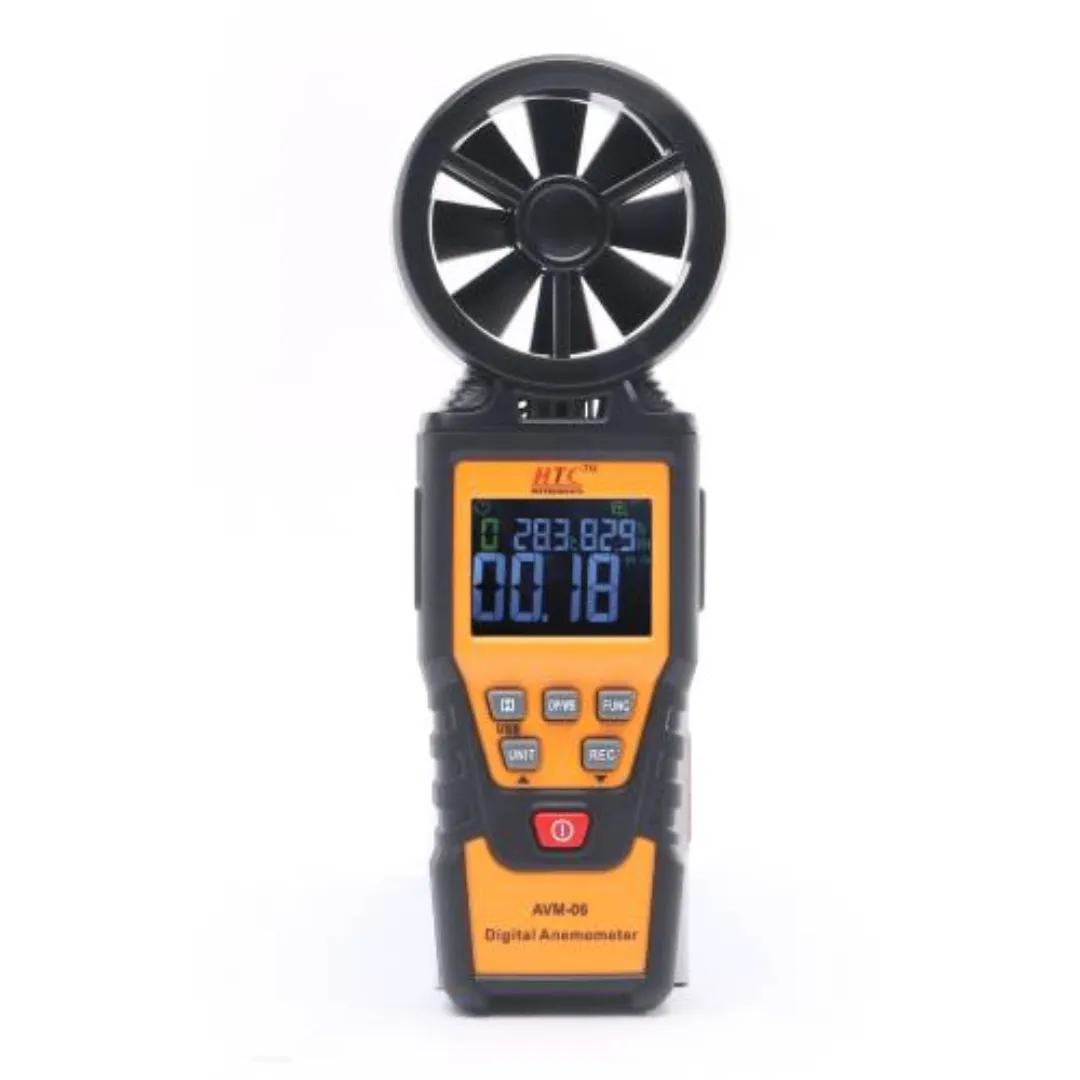

HTC AVM‑06 Digital Handheld Anemometer – High‑Precision Wind Speed and Airflow Measurement

The HTC AVM‑06 is a professional‑grade handheld anemometer engineered for precise measurement of wind velocity and airflow volume. Designed for HVAC technicians, environmental engineers, agricultural planners, wind energy professionals, and industrial maintenance teams, this compact instrument combines accuracy, versatility, and portability for use in varied applications. With a user‑friendly interface and robust construction, it offers reliable readings in demanding work environments.

Accurate Wind Speed Measurement

The AVM‑06 accurately measures air velocity from 0.40 to 30.00 m/s with resolution of 0.01 m/s and an accuracy of ±(2.0 % of reading + 0.5 m/s)—perfect for applications in ventilation diagnostics, weather assessment, and duct inspection. It supports multiple units—km/h, ft/s, ft/min, knots, and mph—each with appropriate resolution and precision across the full range. This flexibility accommodates diverse user preferences and industry needs.

Airflow Volume and Duct Measurement

With built‑in airflow functionality, the AVM‑06 calculates air volume once the duct cross‑sectional area is entered. It supports CFM (cubic feet per minute), CMM (cubic meters per minute), and CMS (cubic meters per second) units, making it ideal for HVAC system balancing, air quality assessments, and ventilation maintenance in industrial or laboratory environments.

Data Hold, Max/Min, and Average Recording

Users can freeze a reading using the data‑hold feature to capture critical values during measurement. The meter also cycles through maximum, minimum, and average wind speed readings—allowing quick assessment of airflow stability over time. These statistical features support dynamic assessment in variable flow conditions.

Multiple Units and Display Flexibility

The AVM‑06 supports seamless switching between units for both velocity and flow, letting users measure in m/s, km/h, ft/s, knots, and other formats. The clear LCD display accommodates up to 9999 counts, complete with backlight for readability in dim or bright environments. Icons display current mode such as “VEL,” “FLOW,” or “AREA,” and battery status.

Portable Design with Auto Power‑Off

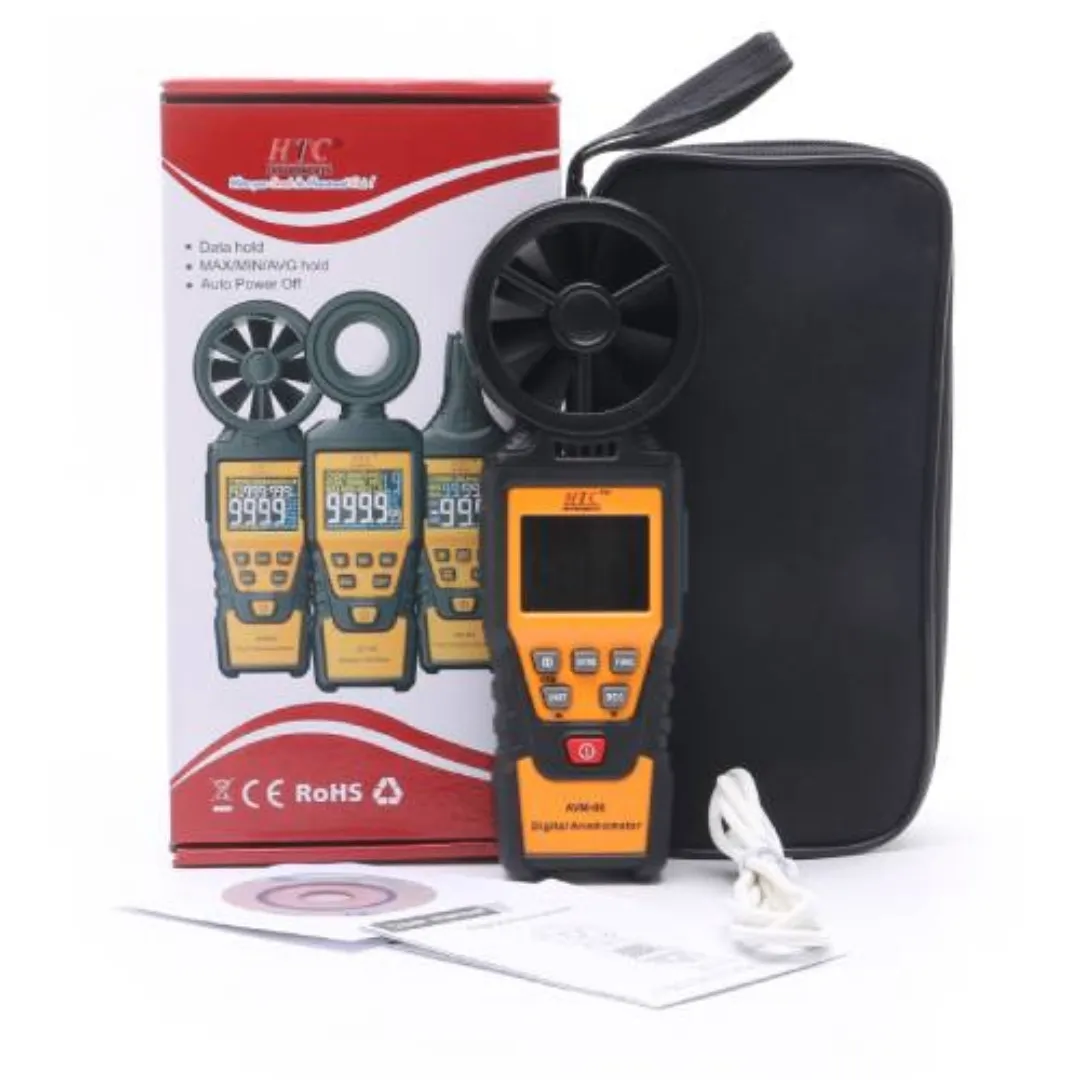

With dimensions around 165 × 85 × 38 mm and powered by three AAA batteries, this anemometer is lightweight and highly portable. It automatically shuts off after 10 minutes of inactivity to conserve battery life, with an override option for continuous operation. It comes complete with USB data‑upload capability, software, and user manual.

USB Connectivity & Real‑Time Data Output

The AVM‑06 includes USB connectivity for real‑time data uploading to PCs using included software. It also features optional RS‑232 interface compatibility for extended data logging or integration with external systems such as building automation or weather stations. This makes it ideal for workflow automation and long‑term environmental monitoring.

Durable and Reliable Construction

Designed for field use, the handheld unit performs reliably in temperatures from 0 °C to 40 °C and humidity levels below 80% RH, with storage conditions rated up to ‑10 °C to 50 °C. Its vane fan sensor is constructed with precision bearings for smooth, accurate measurements. Maintenance guidance ensures long service life under regular indoor and outdoor usage.

Key Applications Across Industries

The HTC AVM‑06 lends itself to a wide range of professional uses:

• HVAC system diagnostics and airflow balancing

• Wind energy site evaluation and wind tunnel testing

• Environmental monitoring and meteorological surveys

• Agricultural ventilation and greenhouse air circulation checks

• Infrastructure inspection at airports, highways, or industrial facilities

• General wind speed analysis for safety and performance testing

It is particularly useful when accurate air velocity and flow volume data are required quickly and reliably.

Highlight Features Summary

• Wind speed range: 0.40–30.00 m/s with ±(2 % + 0.5 m/s) accuracy

• Multi-unit support: m/s, km/h, ft/s, ft/min, knots, mph

• Airflow volume modes: CFM, CMM, CMS with user-entered area

• Functions: Data hold, MAX/MIN/AVG statistical logging

• Display: Backlit LCD, 9999‑count resolution

• Power: 3 × AAA batteries, auto power-off after 10 minutes, optional continuous mode

• USB real-time data upload with included software; compatible with RS‑232 interfaces

• Dimensions: ~165 × 85 × 38 mm; Operational environment: 0–40 °C, < 80 % RH

Benefits for Users

For professionals in HVAC, environment, and meteorological fields, the AVM‑06 offers reliable and precise wind-speed and air-volume measurement. Its combination of statistical measurement modes, unit flexibility, and data connectivity streamlines workflows, documentation, and analysis. Lightweight and intuitive, it delivers field-ready performance without sacrificing measurement integrity.

Conclusion

The HTC AVM‑06 Digital Anemometer is a robust, versatile instrument that merges precise airflow measurement with portability and digital connectivity. Ideal for HVAC diagnostics, environmental surveying, wind energy assessment, and ventilation engineering, it provides professionals with accurate data and enhanced usability in a compact handheld format. For consistent, repeatable airflow and wind-speed measurements, the AVM‑06 offers the balance of performance and usability required in professional settings.
