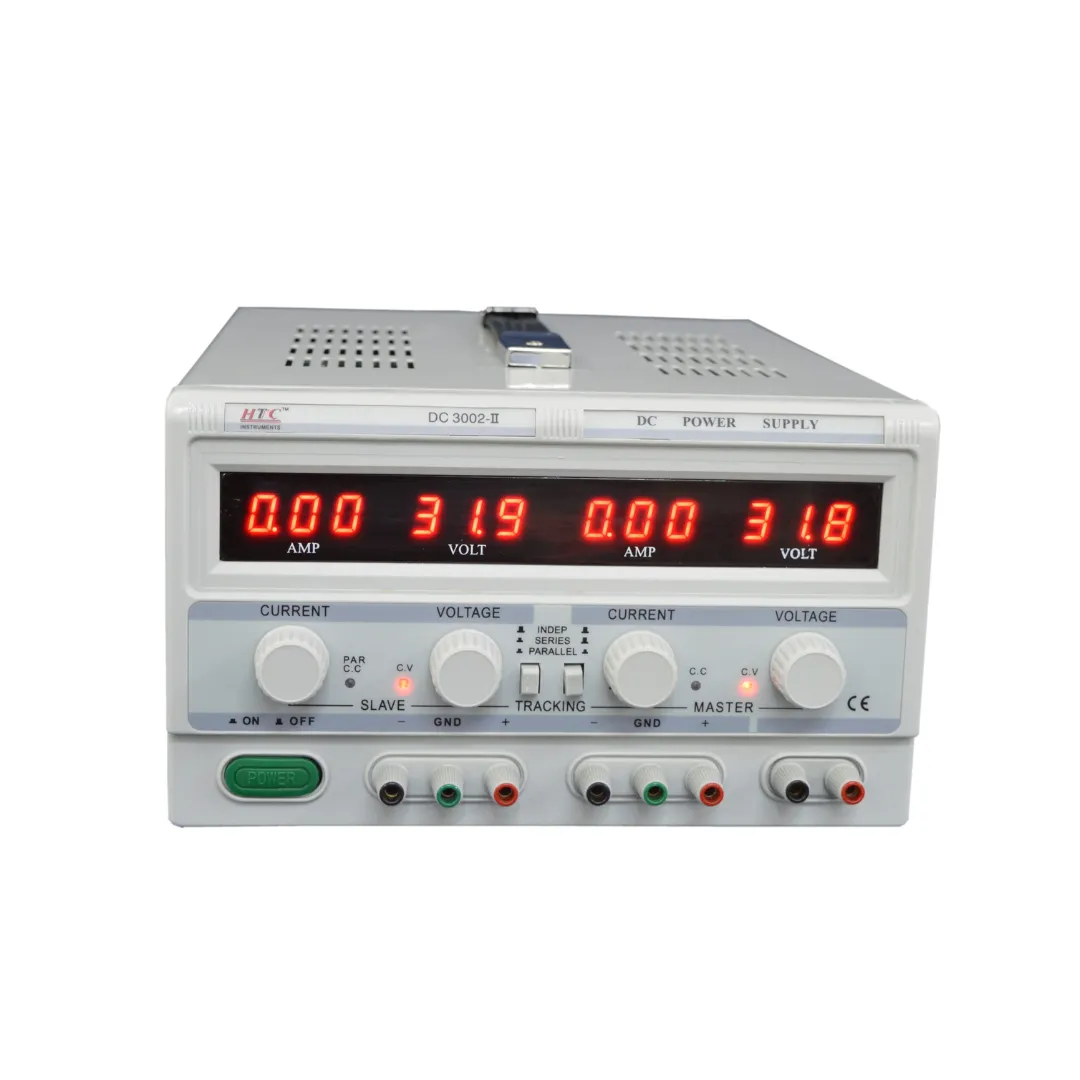

DC 2A Linear Dual Power Supply ( HTC – DC-3002-II )

Description

HTC DC-3002-II DC Regulated Power Supply — Compact Precision and Robust Performance

The HTC DC-3002-II is a highly accurate, linear DC power supply offering 0 to 30 V adjustable voltage with up to 2 A of current. This dual-output supply is designed for professional, educational, and hobbyist environments—combining tight regulation, low noise, built-in protections, and an easy-to-use form factor to support a wide range of electronics applications.

Exceptional Output Accuracy and Stability

The DC-3002-II delivers clean, reliable power with notable specifications:

Line Regulation

• Constant Voltage (CV): ≤ 0.01% + 3 mV

• Constant Current (CC): ≤ 0.2% + 3 mA
  These exceptionally tight tolerances mean voltage and current remain steady even as mains input fluctuates.

Load Regulation

• CV: ≤ 0.01% + 3 mV

• CC: ≤ 0.2% + 3 mA
  Regardless of connected load changes, output remains stable—vital for repeatable testing environments.

Ripple & Noise

• Voltage Ripple: ≤ 1 mV RMS (CV mode)

• Current Noise: ≤ 3 mA RMS (CV mode)
  Ultra-low noise levels ensure sensitive analog electronics perform reliably without interference.

Tracking Error

• ≤ 0.5% + 10 mV
  Voltage and current follow their set points closely, delivering predictable power behavior.


Indication Accuracy

• ≤ 0.5% + 1 digit
  The LED display gives confidence in readings—especially important during precision tasks.

Intelligent Safety Features

The supply incorporates essential safeguards:

• Constant Current (CC) Mode

• Short-Circuit Protection
  These protect both the power supply and connected devices against overload or accidental short conditions.

Technical Specifications and Dimensions

• Output Voltage: 0–30 V DC

• Output Current: 0–2 A continuous

• Fixed Output: 5 V at 2 A (dedicated terminal)

• Input Power: 220 VAC ±10%, 50 Hz ±2 Hz

• Physical Size: 240 mm (H) × 150 mm (W) × 270 mm (D) — compact and easy to fit into small workspaces

• Standard Accessories: Power cord, user manual, and test lead included for complete usability right out of the box

Dual-Output Versatility & User Convenience

This model provides dual outputs:

• One fully adjustable from 0 to 30 V and 0 to 2 A

• A fixed 5 V, 2 A output ideal for powering logic circuits or USB-based devices

The dual-output design improves usability—engineers can power different circuit elements simultaneously without added adapters.

Practical Applications for Diverse Users

Electronics Development & Lab Prototyping

With its accuracy and low noise, the DC-3002-II supports work on analog amplifiers, microcontroller boards, sensor circuits, signal conditioning, and more.

Education & Training

Its simplicity, safety protections, and precise display make it ideal for classroom setups and electronics learning.

Maintenance & Repair

Technicians benefit from accurate voltage sourcing and current limiting when repairing or testing field-installed equipment.

Creative Hobbyists & Makers

From robotics to IoT projects, hobbyists enjoy clean and adjustable power, plus a built-in 5 V supply for microcontrollers.

Low-Power Industrial Applications

Compact and rugged, it suits low-power industrial test environments and small automation setups.

How the DC-3002-II Excels Technically

• Superior Regulation: Maintains output under both supply changes (line) and load variation.

• Low Noise for Sensitive Circuits: Excellent ripple specs protect analog or audio electronics from interference.

• Smart Protections: Short-circuit and CC modes safeguard users and devices.

• Clear and Accurate Display: Users can rely on digital readouts for voltage and current.

• Space-Saving Footprint: Compact design supports clean workspaces and easy portability.

Technical Snapshot

Final Thoughts

For anyone needing reliable and accurate bench power in a compact, dependable instrument, the HTC DC-3002-II delivers on every front. Its dual-output capability, tight regulation, low noise, clear display, and smart protections make it a versatile asset for electronics professionals, educators, students, and hobbyists.
