Two-Set-Point-Temperature-Controller
Measuring Instruments: Your One-Stop Solution For Process Control > Products > Digital Temperature Controller Cum Timer (TEMP-TIME) with 2 relay output 96*96*110

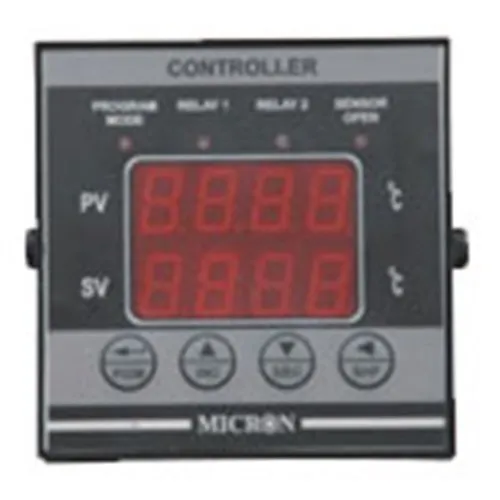

Digital Temperature Controller Cum Timer (TEMP-TIME) with 2 relay output 96*96*110

Original price was: ₹7,350.00.Current price is: ₹5,145.00.

1 in stock (can be backordered)

Add to wishlist
Compare
SKU: DTT-96 Categories: ,
Digital Temperature Controller

Sizes Available

 : 96 x 96 x 120 mm. .
 Inputs : Pt-100 (DIN) / J, K, , Thermocouple
 Temp. Hysterisis : 01~10°C
 Display : 4 + 4 Digits , 0.56″, Red LED.
 Control : On-Off
 TIming Direction : Down counting
 Reset : Available through front key
 Soak Time : 0~999 min.
 Control O/P : Relay 1C/0, 5A/1 resistive timer O/P Relay 1C/O, 5A/1 resistive and +12VDC for Buzzer
 Alarm Acknowledge : through front key
 Supply : 230V / 100VAc. ±10%, 50 / 60Hz
 Range : 0~1200°C (Depending on input)

Additional information

Make:

Micron
Timing Direction

Down Counting
Rest

Available through front key
Soak Time

0-999 min
Control O/P

5A/1 Resistive, 5A/1 Resistive and +12VDC For Buzzer, Relay 1C/O, Timer: O/P Relay 1C/O
Power Supply

230 Vac
