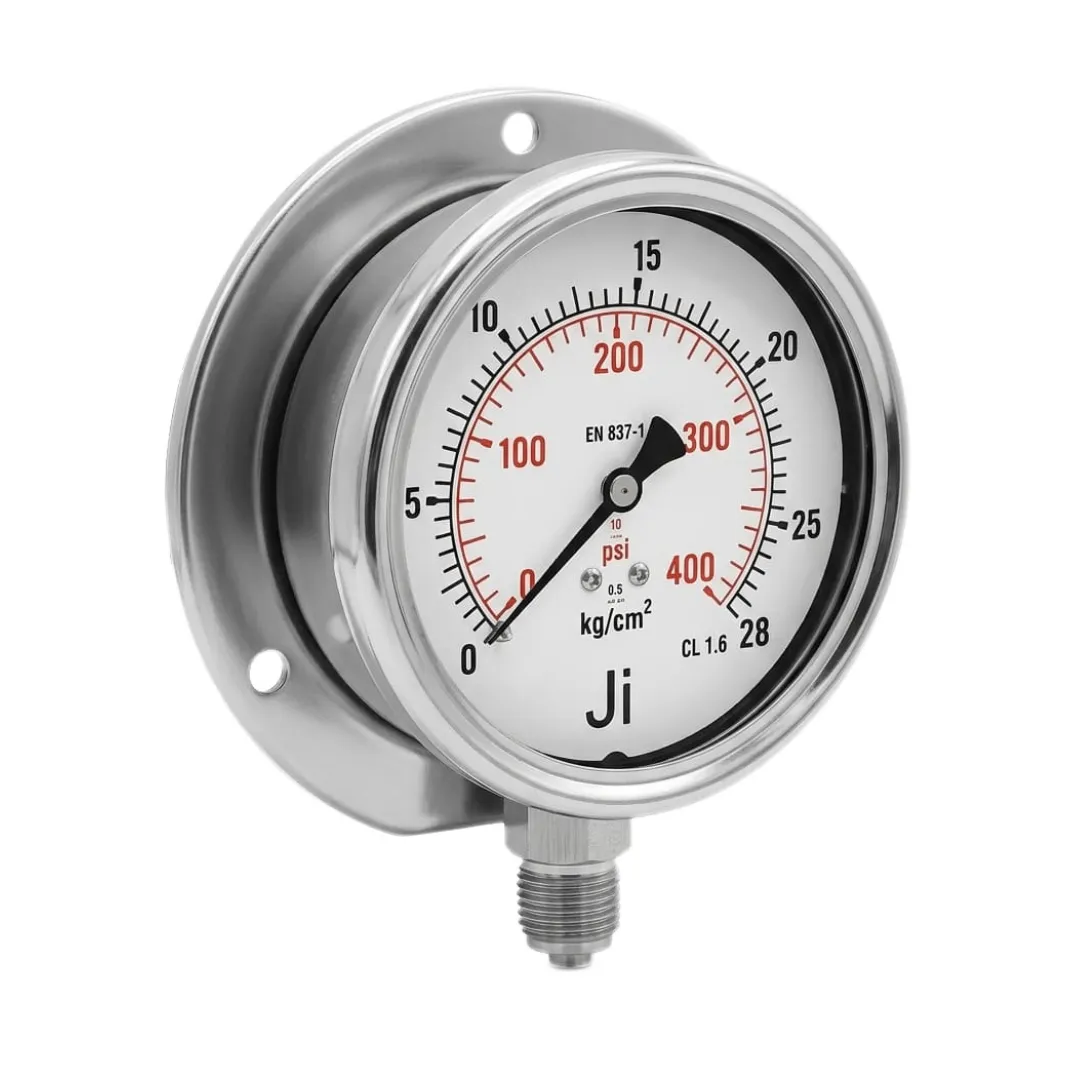

Economical Pressure Gauge Glycerin Filled, 4″ (100 mm) Dial, Range 0 to 28 Kg/Cm2 With Dual Scale of 400 PSI, Surface Mounting Bottom Entry, 3/8″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Crimping Type)

Description

Economical Pressure Gauge Glycerin Filled, 4″ (100 mm) Dial, 0 to 28 Kg/Cm2 with Dual Scale of 400 PSI

The Economical Pressure Gauge Glycerin Filled, designed and manufactured by “Ji” Japsin Instrumentation, is an exceptional instrument for precision pressure monitoring. This robust gauge features a 4″ (100 mm) dial, ideal for applications demanding high visibility and accuracy. Covering a pressure range from 0 to 28 Kg/Cm2, with a dual scale reading of 400 PSI, this pressure gauge meets the stringent requirements of various industrial applications where pressure monitoring is critical.

Constructed with a stainless steel (SS) case and wetted parts, the gauge is resistant to corrosion and built to withstand tough environmental conditions. The glycerin filling adds to its durability by dampening vibrations and pulsations, ensuring a steady needle movement and accurate readings. This gauge is ideal for sectors like hydraulics, pneumatic systems, HVAC, refrigeration, and other industries where accurate pressure control is essential for system performance.

Economical Pressure Gauge Glycerin Filled

Design and Durability

The Economical Pressure Gauge Glycerin Filled by “Ji” Japsin Instrumentation is crafted for superior durability and functionality. The stainless steel 304 case ensures resistance to corrosion and rust, making it suitable for demanding and corrosive environments. The crimping type design of the case offers added protection by tightly sealing the internal components from external contaminants such as dust, moisture, and dirt. This design significantly increases the lifespan of the gauge, especially when used in industrial settings.

The stainless steel wetted parts ensure compatibility with a wide range of fluids, including aggressive or corrosive media, commonly found in industries like chemical processing and hydraulic systems. With its sturdy construction and reliable performance, this gauge is built to withstand the rigors of continuous use in high-pressure environments.

High-Precision Pressure Monitoring

Designed to meet the needs of both engineers and operators, this pressure gauge offers accurate and precise monitoring with a range of 0 to 28 Kg/Cm2, alongside a dual scale of 400 PSI. The dual-scale feature ensures that users can easily interpret readings in both metric and imperial units, enhancing the versatility of this instrument.

The accuracy of 1.6% FSD (Full Scale Deflection) ensures that the pressure readings are reliable and consistent. This level of precision is crucial in applications where maintaining optimal pressure levels is key to the safety and functionality of the system, such as in refrigeration systems, industrial machinery, and HVAC systems.

Glycerin Filling for Vibration Dampening

A major highlight of this gauge is its glycerin-filled design, which provides critical benefits in high-vibration environments. Glycerin acts as a damping medium, minimizing needle fluctuation caused by machinery vibrations or pressure pulsations. This results in more stable, accurate readings that are easier to interpret, even under challenging conditions.

In industrial settings where mechanical systems may generate high levels of vibration or where pressure changes frequently, the glycerin filling improves both the accuracy of readings and the lifespan of the gauge. By reducing the impact of these external forces, the glycerin also protects the internal components, lowering the chances of wear and extending the service life of the gauge.

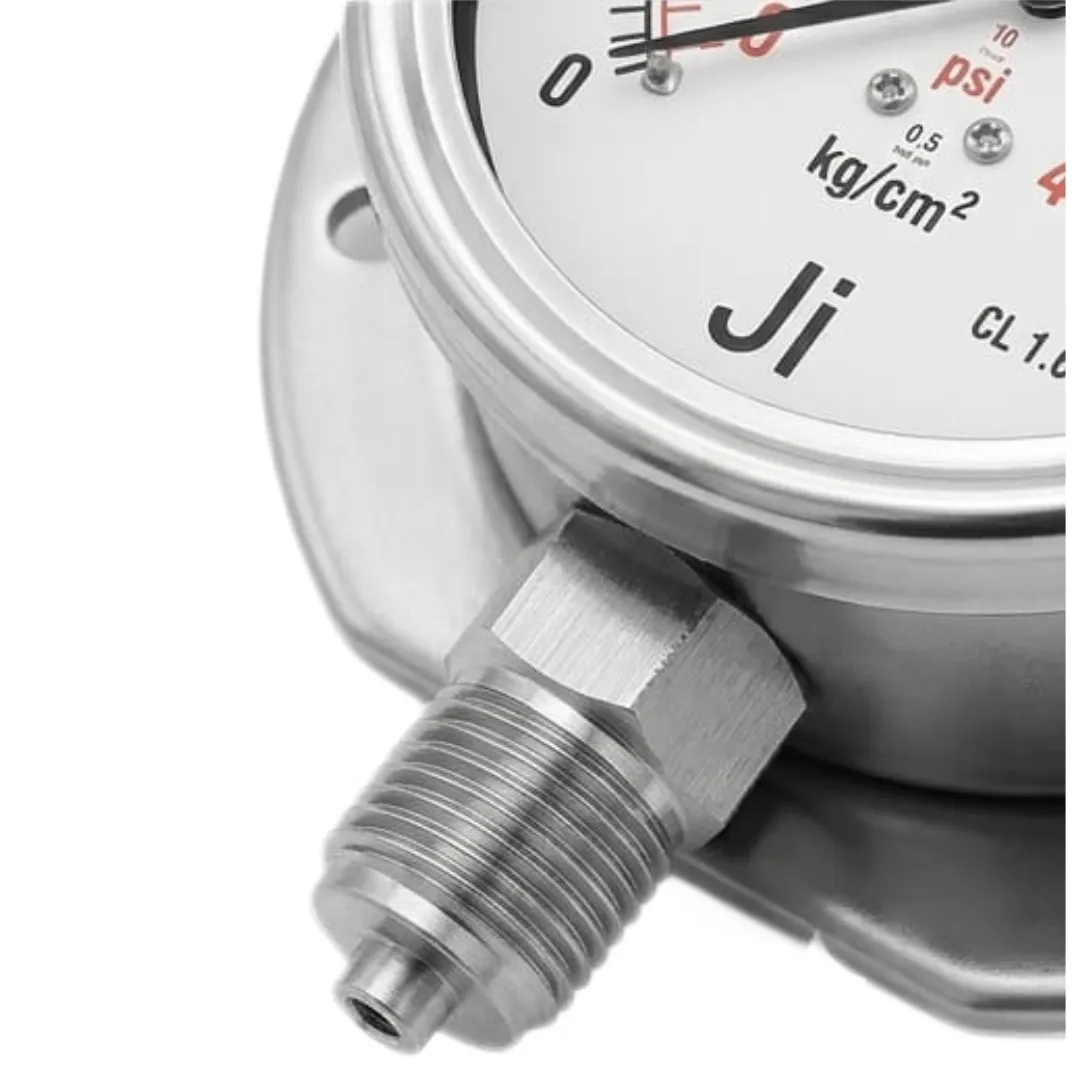

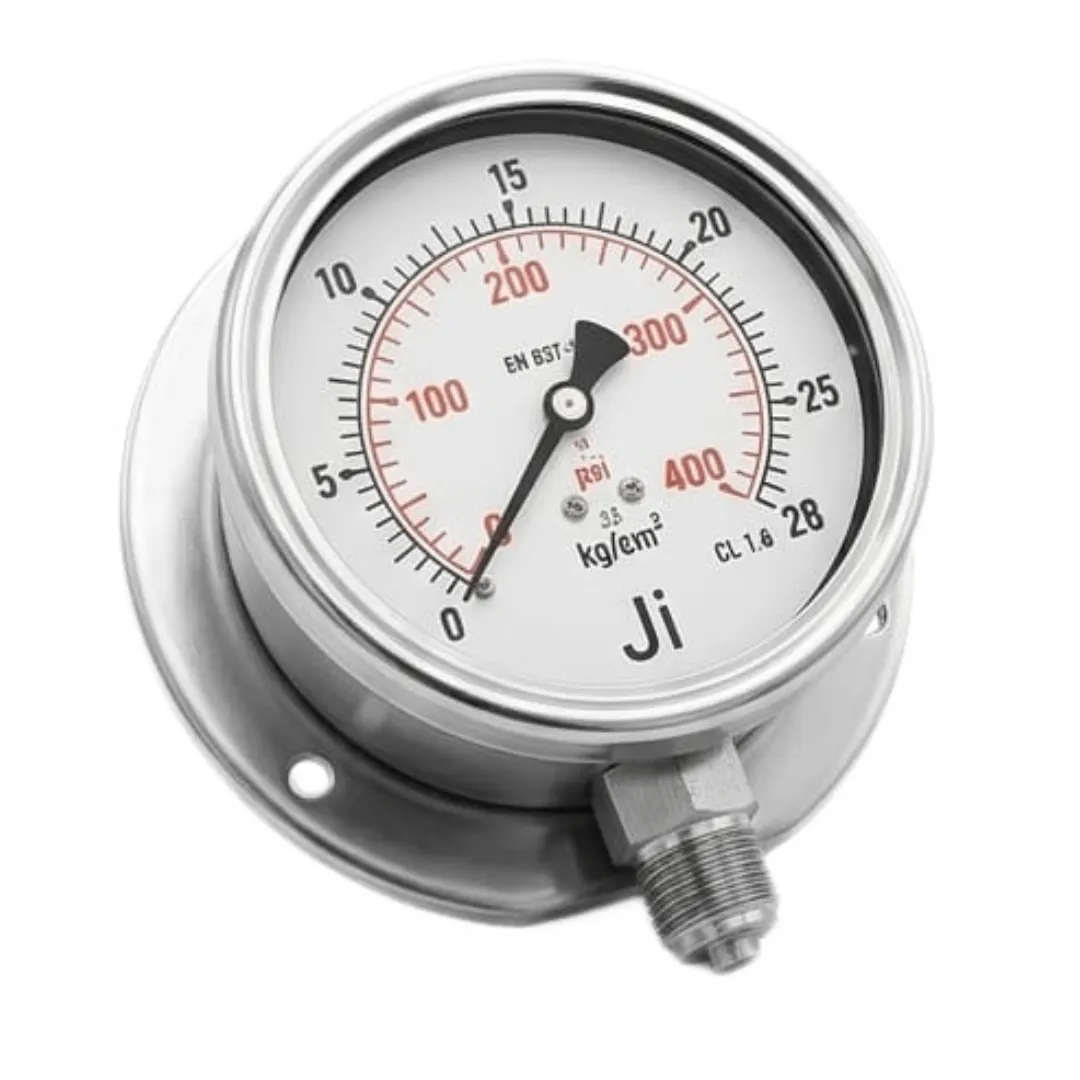

Surface Mounting and Bottom Entry Design

The surface mounting design of this pressure gauge makes it incredibly versatile in various installations. It is ideal for applications that require fixed mounting on panels, walls, or machinery. The bottom entry connection ensures easy integration into existing systems and provides convenient visibility of pressure readings.

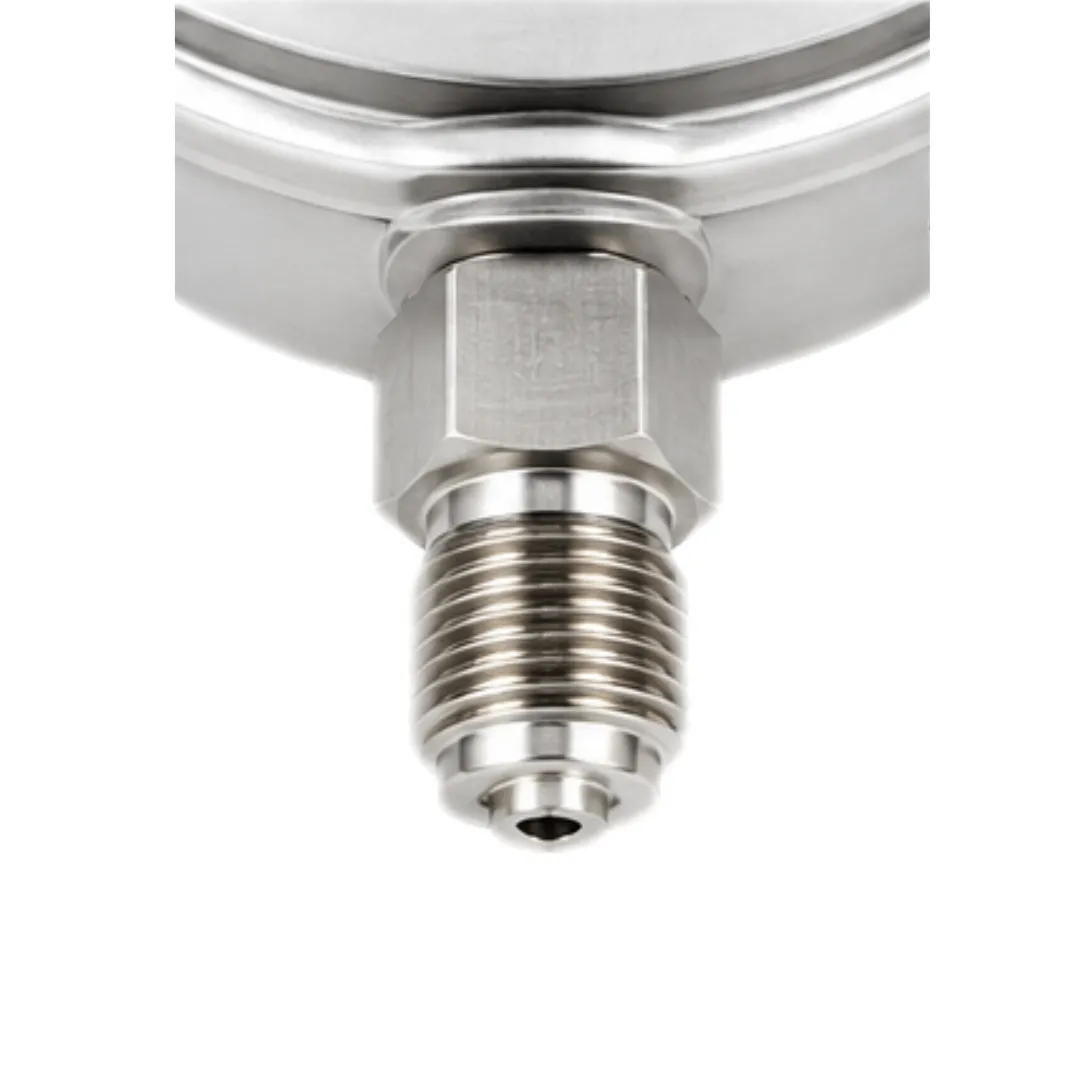

The 3/8″ BSP (M) connection is a standard threading size, compatible with a wide range of industrial systems. This standardization allows for easy installation and replacement without the need for additional adapters or fittings, which minimizes downtime and ensures that your system stays operational.

Wide Range of Applications

The Economical Pressure Gauge Glycerin Filled is designed for use in numerous industries and applications, making it a highly versatile instrument. Here are some typical applications:

• Hydraulic Systems: The gauge’s stainless steel construction and precise readings make it ideal for monitoring hydraulic fluid pressure in machinery, helping ensure proper operation and preventing system failures due to pressure irregularities.
• Pneumatic Systems: In pneumatic systems, where maintaining specific air pressure is critical for operation, this gauge provides accurate and reliable pressure monitoring, ensuring that machinery operates efficiently.
• HVAC Systems: Monitoring air and gas pressure in heating, ventilation, and air conditioning systems is crucial for maintaining optimal system performance. The dual scale makes this gauge particularly useful for technicians who need to work with both metric and imperial units.
• Refrigeration Systems: The stainless steel case and wetted parts, along with the ability to handle a range of pressures, make this gauge well-suited for use in refrigeration systems, where precise pressure control is vital for system efficiency and longevity.
• Chemical Processing: The corrosion-resistant stainless steel construction and wetted parts ensure that this gauge can withstand exposure to harsh chemicals, making it ideal for use in chemical plants and processing facilities.

Safety and Compliance

Safety is a paramount consideration in any industrial setting, and the Economical Pressure Gauge Glycerin Filled by “Ji” Japsin Instrumentation meets stringent safety and quality standards. The gauge complies with ASME B40.1, which is the industry standard for pressure measurement instruments. This compliance ensures that the gauge delivers consistent, reliable performance and meets the required safety criteria for use in a wide range of environments.

Advantages of Stainless Steel Components

The gauge’s stainless steel case and wetted parts offer significant advantages in terms of durability, corrosion resistance, and overall performance. Stainless steel is known for its ability to resist oxidation and maintain structural integrity in harsh environments. Whether exposed to moisture, chemicals, or extreme temperatures, stainless steel ensures that the gauge remains functional and reliable over long periods.

The use of stainless steel wetted parts is particularly beneficial in applications where the pressure medium is corrosive, such as chemical processing plants or food and beverage production. These parts are in direct contact with the fluid being measured, and stainless steel provides excellent resistance to wear and corrosion, ensuring that the gauge performs accurately over its lifetime.

Economical Pressure Gauge Glycerin Filled

Conclusion

The Economical Pressure Gauge Glycerin Filled, 4″ (100 mm) Dial by “Ji” Japsin Instrumentation offers an ideal combination of affordability, precision, and durability. With a pressure range of 0 to 28 Kg/Cm2, a dual scale of 400 PSI, and a robust stainless steel construction, this gauge is built to meet the demands of a wide range of industrial applications. Its glycerin-filled design ensures stable and accurate readings, even in high-vibration environments, making it a dependable choice for sectors like HVAC, hydraulics, pneumatics, and refrigeration.
