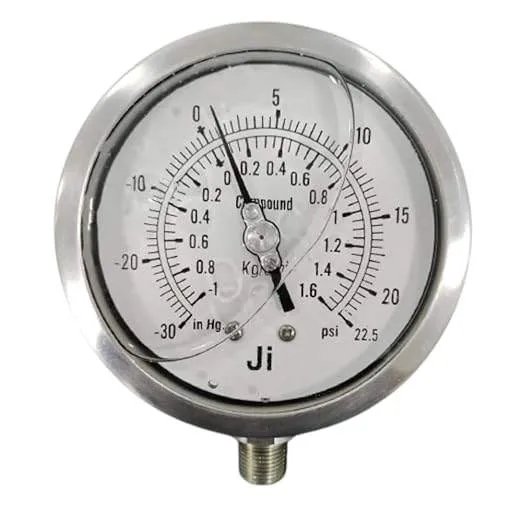

Industrial Compound Gauge Glycerin Filled, 4″ Dial, Range -1 to 1.6 Kg/Cm² with Dual Scale of -30 InHg to 22.5 PSI, Surface Mounting Bottom Entry, 3/8″ NPT (M) Connection, Accuracy 1%
Precision Vacuum and Pressure Measurement for Industrial Process Control
The “Ji” Japsin Instrumentation Industrial Compound Gauge Glycerin Filled is a precision-engineered instrument designed for accurate monitoring of both vacuum and positive pressure within a single gauge. Featuring a 4-inch (100 mm) dial size, measurement range of -1 to 1.6 Kg/Cm², dual scale indication of -30 InHg to 22.5 PSI, surface mounting bottom entry configuration, 3/8″ NPT (M) connection, glycerin-filled construction, and 1% Full Scale Deflection (FSD) accuracy, this compound gauge is ideally suited for applications where precise low-pressure and vacuum monitoring is essential.
In many industrial systems, processes operate under both vacuum and pressure conditions. Monitoring these changes accurately is critical for maintaining process stability, equipment efficiency, and operational safety. The “Ji” Japsin Instrumentation Industrial Compound Gauge provides a reliable solution by combining vacuum and pressure measurement in one rugged instrument, reducing installation complexity while improving process visibility.
Designed for continuous industrial operation, this gauge delivers exceptional performance in HVAC systems, filtration units, vacuum pumps, pharmaceutical plants, chemical processing equipment, pneumatic systems, water treatment facilities, laboratories, and various process industries.
What is a Compound Gauge?
A compound gauge is a specialized measuring instrument capable of indicating both vacuum and positive pressure on the same dial. Unlike standard pressure gauges that measure only positive pressure, compound gauges allow operators to monitor systems that operate below and above atmospheric pressure.
This capability is particularly important in applications such as:
- Vacuum pumps
- Air handling systems
- Filtration equipment
- Suction lines
- Process vessels
- Packaging machinery
- Pneumatic equipment
- Laboratory systems
The “Ji” Japsin Instrumentation Industrial Compound Gauge enables seamless monitoring of pressure transitions, helping operators maintain optimal process conditions.
Pressure Range: -1 to 1.6 Kg/Cm²
This compound gauge is calibrated to measure:
Vacuum Range
- -1 Kg/Cm²
Positive Pressure Range
- 0 to 1.6 Kg/Cm²
The range is specifically selected for low-pressure industrial applications where accurate monitoring of slight pressure and vacuum variations is required.
Applications involving blowers, ventilation systems, filter monitoring, vacuum chambers, and process control systems benefit significantly from this measurement range.
Dual Scale Display for Easy Interpretation
The gauge incorporates a clearly marked dual-scale dial.
Primary Scale
- -1 to 1.6 Kg/Cm²
Secondary Scale
- -30 InHg to 22.5 PSI
This dual-unit configuration allows operators to quickly interpret readings without performing manual conversions.
Advantages of Dual Scale Reading
- Easy operation
- Improved productivity
- Reduced operator error
- Faster process monitoring
- International compatibility
The large and well-defined markings ensure excellent visibility in industrial environments.
High Accuracy – ±1% FSD
Precision measurement is essential in process industries where even small pressure deviations can affect product quality and system performance.
The “Ji” Japsin Instrumentation Compound Gauge provides an impressive ±1% Full Scale Deflection (FSD) accuracy.
Benefits of High Accuracy
- Improved process control
- Better equipment protection
- Enhanced operational safety
- Consistent measurement performance
- Reliable system diagnostics
- Reduced maintenance costs
Accurate readings help identify abnormal operating conditions before they become major issues.
Glycerin Filled for Stable Performance
The gauge is filled with high-quality glycerin to provide superior damping and vibration resistance.
Industrial equipment often generates vibration and pressure pulsations that can cause the pointer of a dry gauge to fluctuate excessively. Glycerin filling eliminates this problem by stabilizing pointer movement.
Benefits of Glycerin Filling
- Reduced needle vibration
- Improved readability
- Enhanced measurement stability
- Protection of internal components
- Longer instrument lifespan
- Better performance in harsh environments
This feature makes the gauge particularly suitable for compressors, pumps, blowers, and industrial machinery.
Large 4-Inch Dial for Superior Visibility
The instrument features a 100 mm (4-inch) dial, providing excellent readability from a distance.
Advantages of Large Dial Size
- Easy monitoring
- Improved operator convenience
- Reduced reading errors
- Better process visibility
- Suitable for plant installations
The large display enables operators to quickly verify process conditions during routine inspections and operations.
Surface Mounting Configuration
This model is supplied with a surface mounting arrangement, making it ideal for control panels, equipment enclosures, and centralized monitoring stations.
Benefits of Surface Mounting
- Easy installation
- Secure positioning
- Improved accessibility
- Professional appearance
- Convenient monitoring
Surface mounting is commonly used where operators need direct visual access to pressure readings.
Bottom Entry Design
The gauge utilizes a bottom entry process connection, providing a practical and widely accepted installation method.
Advantages
- Simplified installation
- Better dial orientation
- Secure mounting
- Reduced piping complexity
- Industrial standard configuration
Bottom entry gauges are commonly installed in process plants and machinery systems.
Standard 3/8″ NPT Male Connection
The gauge is equipped with a 3/8″ NPT (Male) threaded connection.
Benefits
- Standard industrial compatibility
- Leak-free installation
- Easy integration
- Secure process connection
- Reliable sealing performance
The NPT thread design ensures dependable installation in a wide variety of industrial systems.
Applications Across Industries
The “Ji” Japsin Instrumentation Industrial Compound Gauge is suitable for numerous industrial applications.
1. HVAC Systems
Monitors duct pressure, airflow, and ventilation performance.
2. Vacuum Pumps
Measures vacuum generation and system efficiency.
3. Filtration Systems
Tracks pressure differential and filter condition.
4. Pharmaceutical Industry
Used in cleanroom and process control applications.
5. Chemical Processing Plants
Monitors low-pressure process lines and vessels.
6. Pneumatic Systems
Measures air pressure and vacuum conditions.
7. Water Treatment Plants
Supports filtration and pumping system monitoring.
8. Packaging Equipment
Used in vacuum packaging and sealing systems.
9. Laboratories
Ideal for research, testing, and experimental setups.
10. Food Processing Plants
Suitable for vacuum-assisted production processes.
Importance of Accurate Vacuum and Pressure Monitoring
Monitoring both vacuum and pressure conditions is essential for maintaining:
- Process efficiency
- Product consistency
- Equipment reliability
- Operational safety
- Energy efficiency
- Regulatory compliance
Accurate measurements help identify:
- Air leaks
- Clogged filters
- Pump inefficiencies
- System blockages
- Process abnormalities
Early detection allows corrective action before equipment damage or production losses occur.
Rugged Construction for Long Service Life
The “Ji” Japsin Instrumentation Industrial Compound Gauge is built to withstand demanding industrial conditions.
Reliability Features
- Industrial-grade construction
- Stable calibration characteristics
- Vibration-resistant design
- Long-term measurement accuracy
- Low maintenance requirements
- Extended operational life
The combination of precision engineering and glycerin filling ensures dependable performance even in challenging environments.
Why Choose “Ji” Japsin Instrumentation Industrial Compound Gauge?
The “Ji” Japsin Instrumentation Industrial Compound Gauge Glycerin Filled is engineered for applications requiring accurate monitoring of both vacuum and low positive pressure. Its -1 to 1.6 Kg/Cm² measuring range, dual scale display, 4-inch dial, glycerin-filled design, surface mounting configuration, 3/8″ NPT connection, and 1% accuracy make it a dependable choice for industrial process control.
Whether installed in HVAC systems, vacuum pumps, filtration plants, pharmaceutical facilities, chemical processing units, water treatment systems, or manufacturing equipment, this compound gauge delivers precise measurement, stable performance, and long service life. For industries seeking reliable vacuum and pressure monitoring in one instrument, “Ji” Japsin Instrumentation provides a trusted solution built for accuracy, durability, and operational excellence.
