Description

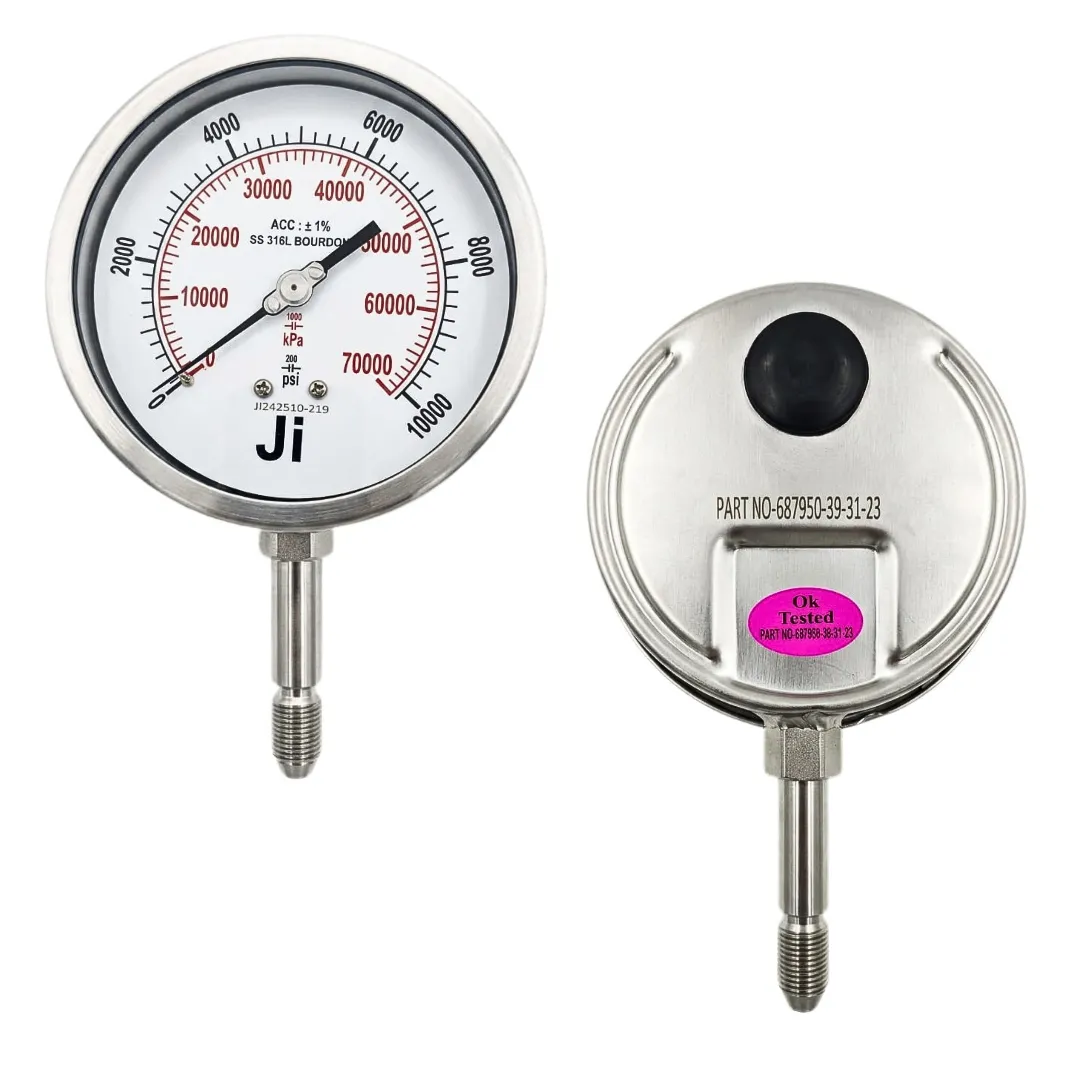

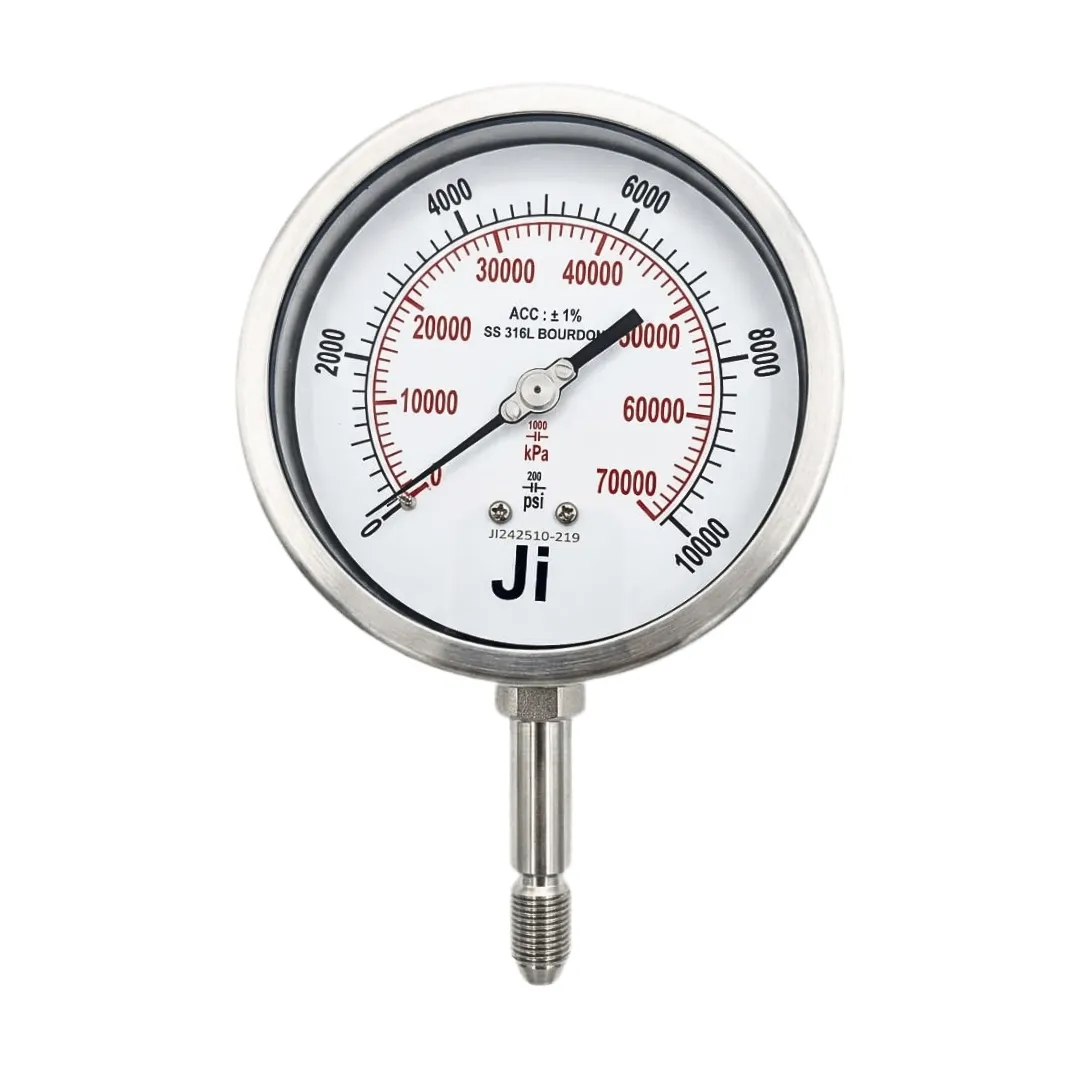

“Ji” Japsin Instrumentation Industrial Pressure Gauge for Oil & Gas – 4.5″ (115 mm) Dial | 0–10000 PSI | Dual Scale 70000 kPa | 9/16″ API Thread | SS Case & Wetted Parts (Bayonet Type)
High-Pressure Industrial Gauge for Oil & Gas Applications up to 10,000 PSI
The “Ji” Japsin Instrumentation Industrial Pressure Gauge for Oil & Gas is a precision-engineered, heavy-duty pressure measurement instrument specifically designed for high-pressure applications up to 10,000 PSI (70000 kPa). Built to perform in extreme environments, this gauge is ideal for oilfield operations, hydraulic systems, drilling rigs, offshore platforms, and high-pressure industrial processes.
With a 4.5″ (115 mm) dial size, SS case & SS wetted parts, and a 9/16″ API thread connection, this pressure gauge ensures maximum durability, accuracy, and reliability in demanding applications. The bayonet-type case construction allows easy maintenance and long service life, making it a preferred choice for engineers and technicians in critical industries.
If you are looking for a high-pressure oil and gas gauge with API connection, this model delivers exceptional performance, safety, and long-term stability.
Key Features
1. Ultra-High Pressure Capability (Up to 10,000 PSI)
Designed for high-pressure environments, this gauge supports applications where standard gauges fail. Ideal for hydraulic systems, drilling rigs, and pressure testing setups.
2. Dual Scale for Global Usability
The gauge displays pressure in:
- PSI (0–10,000)
- kPa (0–70,000)
This dual-scale design allows easy interpretation for international users and engineers working with different unit systems.
3. Large 4.5″ (115 mm) Dial for Clear Visibility
The oversized dial ensures:
- Easy readability from a distance
- Accurate observation in field conditions
- Reduced chances of reading errors
4. Stainless Steel Construction (SS Case & Wetted Parts)
Built entirely with stainless steel components:
- Corrosion-resistant
- Suitable for harsh oilfield environments
- Compatible with aggressive media (subject to material compatibility)
- Long operational life
5. 9/16″ API Thread Connection
Specifically designed for oil & gas industry standards:
- Ensures secure and leak-proof connection
- Compatible with oilfield equipment
- Eliminates need for adapters
- Designed without collar gland for direct installation
6. Bayonet Type Case for Easy Maintenance
The bayonet bezel design allows:
- Easy opening and servicing
- Quick internal inspection
- Reduced maintenance downtime
7. High Accuracy and Stability
With a least count of 200 PSI, the gauge provides:
- Stable readings
- Reliable pressure monitoring
- Suitable for critical process control
Applications in Oil & Gas Industry
This high-pressure gauge is widely used in:
1. Oil Drilling & Exploration
- Monitoring wellhead pressure
- Drilling mud systems
- Blowout preventers (BOP systems)
2. Hydraulic Systems
- High-pressure hydraulic pumps
- Hydraulic presses
- Oilfield hydraulic circuits
3. Offshore Platforms
- Pressure monitoring in subsea equipment
- Marine and offshore systems
4. Refineries & Petrochemical Plants
- Process pressure measurement
- High-pressure pipelines
- Reactor systems
5. Pressure Testing & Calibration
- Hydrostatic pressure testing
- Calibration labs
- Safety valve testing
Why High-Pressure Gauges are Critical in Oil & Gas
In oil and gas operations, pressure plays a crucial role in:
- Ensuring operational safety
- Preventing equipment failure
- Maintaining process efficiency
- Avoiding hazardous incidents
A reliable high-pressure gauge like this ensures:
1. Accurate monitoring
2. Early detection of pressure anomalies
3. Prevention of overpressure conditions
4. Compliance with safety standards
Design & Construction Details
1. Stainless Steel Case
- Protects internal mechanism from environmental damage
- Resistant to corrosion and mechanical stress
2. Wetted Parts (SS 316/304)
- Compatible with oil, gas, and industrial fluids
- Prevents contamination and corrosion
3. Bourdon Tube Mechanism
- Precision-formed for high-pressure measurement
- Converts pressure into mechanical movement
4. Dial & Pointer
- High-contrast dial for easy readability
- Balanced pointer for accurate indication
5. Window
- Toughened glass / polycarbonate
- Scratch-resistant and durable
Performance Benefits
- High resistance to vibration and pulsation
- Long-term calibration stability
- Minimal maintenance requirements
- Accurate readings even in harsh environments
- Reliable performance under extreme pressure conditions
Installation Guidelines
For optimal performance:
- Install vertically with bottom entry connection
- Use thread sealant for leak-proof installation
- Avoid exposure to excessive vibration without damping
- Use snubber or pulsation dampener if required
Maintenance Tips
- Periodically inspect for pointer deviation
- Avoid overpressure beyond rated range
- Clean dial window for clear visibility
- Replace if accuracy deviation is observed
Why Choose “Ji” Japsin Instrumentation?
1. Specialized in industrial instrumentation
2. Proven performance in oil & gas sector
3. High-quality stainless steel construction
4. Competitive pricing
5. Custom solutions available
6. Reliable technical support
Japsin Instrumentation is committed to delivering precision, durability, and performance, making it a trusted choice for industrial pressure measurement solutions.
Conclusion
The “Ji” Japsin Instrumentation Industrial Pressure Gauge for Oil & Gas (0–10,000 PSI) is a high-performance, rugged, and reliable solution for demanding high-pressure applications. Its stainless steel construction, API thread compatibility, and large dial design make it ideal for oilfield operations and industrial environments.
If you need a durable, accurate, and industry-compliant pressure gauge for high-pressure systems, this product offers unmatched reliability and long-term value.
Japsin Instrumentation – Since 1974
