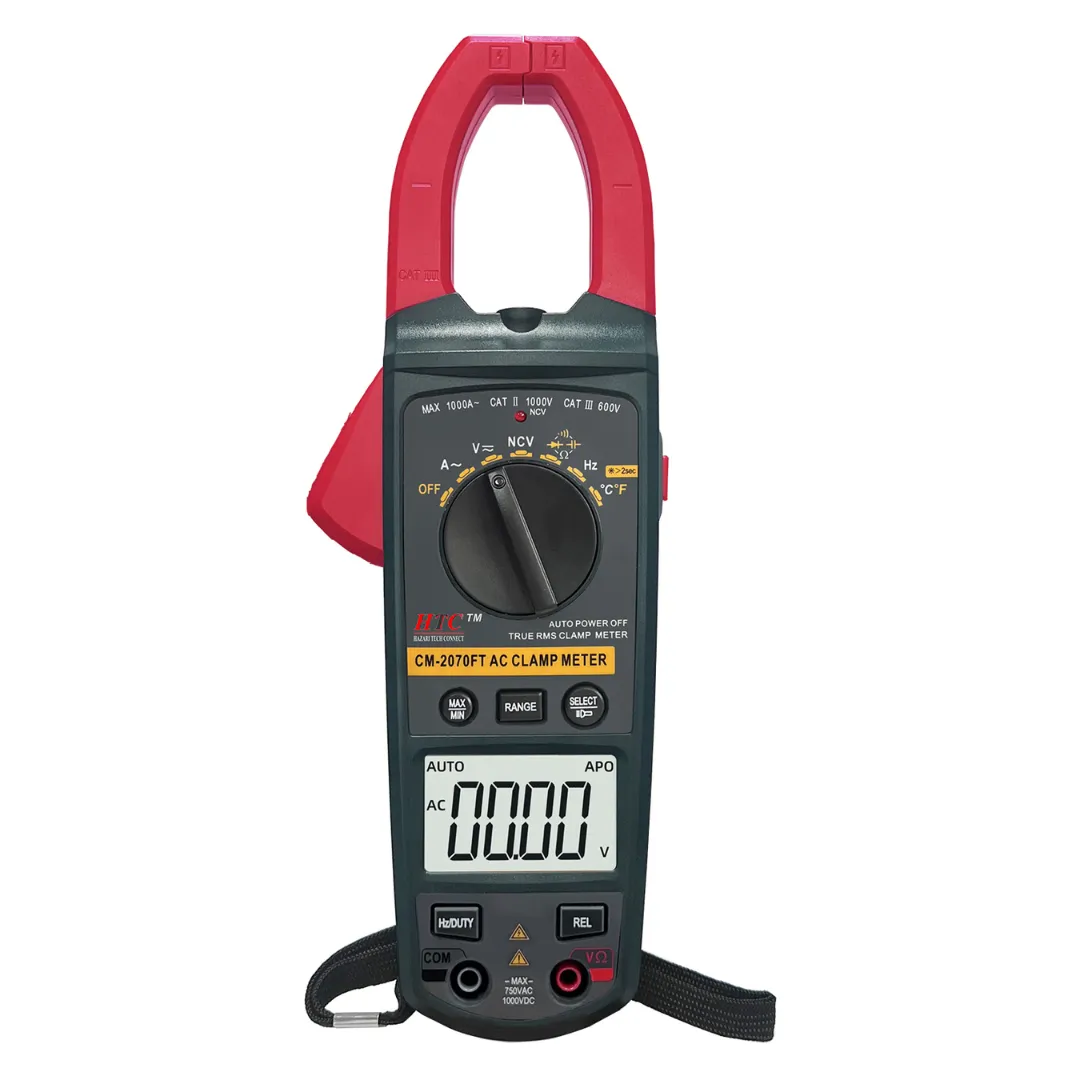

1000A AC Clamp Meter with Temp. & Frequency ( HTC – CM‑2070FT )

Description

The HTC CM‑2070FT Clamp Meter is a premium, professional-grade testing instrument designed for accurate, safe, and efficient electrical measurement across residential, commercial, and industrial applications. Engineers, electricians, technicians, and maintenance personnel alike will appreciate its blend of functionality, safety, and ergonomic design built to withstand rigorous field conditions.

At the core of the CM‑2070FT is its True RMS AC current measurement, capable of handling up to 1000 A, with a jaw opening of 52 mm. This ensures safe, non-intrusive, and accurate measurements on live conductors—even under complex, distorted waveform conditions commonly found in industrial and inverter-fed circuits. This function makes the meter ideally suited for diagnosing motor loads, power distribution systems, and automation equipment.

In addition to current measurement, the CM‑2070FT is a full-featured multimeter offering DC and AC voltage measurement up to 1000 V and 750 V respectively, with resolutions as fine as 0.1 mV and accuracies ranging from ±0.5% to ±1.5% depending on the range. It supports resistance testing from 200 Ω up to 40 MΩ, with resolution down to 0.1 Ω and high accuracy across ranges—making it ideal for continuity checks and component diagnostics.

Enhanced electrical component analysis is supported via capacitance measurement up to 40 mF, with ±2.5% to ±5% accuracy across ranges; frequency and duty cycle testing from 10 Hz up to 10 MHz with ±0.5% accuracy; and temperature measurement from –40 °C to 1000 °C using a standard K-type temperature probe, offering ±1.0% accuracy below 400 °C and ±1.5% beyond that. These comprehensive functions allow users to evaluate everything from circuit frequency behavior and capacitor health to thermal characteristics of equipment.

Safety and usability are key strengths. The device includes a Non-Contact Voltage (NCV) detection, helping identify live wires without direct contact. It offers a clamp torch and backlight for visibility in dim or cramped environments, and essential features like data hold, MAX/MIN recording, relative measurement mode, and both manual and auto-ranging options for flexible and precise operation.

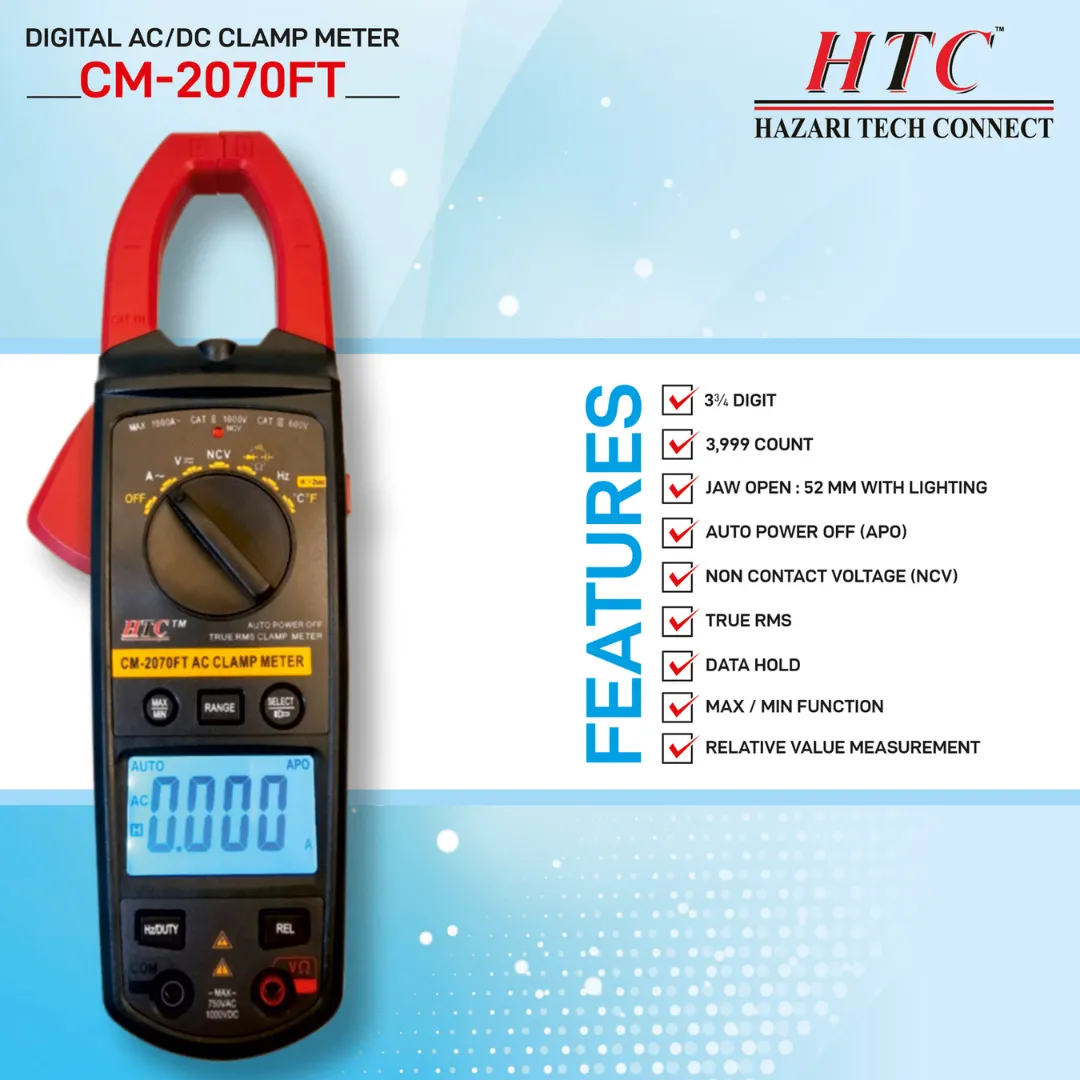

Featuring a large 3¾-digit (4,000‑count) LCD display, the CM‑2070FT ensures readings are easy to view at a glance. To protect device longevity and user safety, it offers over-range indication (“OL”), built-in overload protection, and adheres to CAT III 600 V safety standards. Its ergonomic design—measuring approximately 123 × 270 × 35 mm and weighing around 280 g with batteries—ensures it is light, well-balanced, and highly portable for daily field use.

Powered by two AAA batteries and designed to conserve energy with auto power-off and low battery alerts, the CM‑2070FT remains reliable in prolonged use scenarios. Included accessories such as test leads, temperature probe, user manual, soft carrying pouch, and batteries ensure the meter is ready for immediate deployment.

Whether used for electrical inspections, HVAC diagnostics, industrial equipment testing, or educational training, the HTC CM‑2070FT stands out as a versatile and dependable testing solution. Its True RMS accuracy, wide measurement ranges, and advanced features like NCV detection, clamp lighting, temperature sensing, and frequency analysis make it suitable for electricians, field engineers, maintenance teams, and electronics professionals who need precision under challenging conditions.

In summary, the HTC CM‑2070FT 1000 A AC Clamp Meter combines comprehensive capabilities with rugged reliability and safety compliance. It offers a complete solution for measuring current, voltage, resistance, capacitance, frequency, temperature, along with critical functions such as non-contact voltage detection, data hold, and visual illumination aid. For anyone seeking a high-performance clamp meter that delivers accuracy, convenience, and comprehensive functionality, this model is a top-tier choice.
