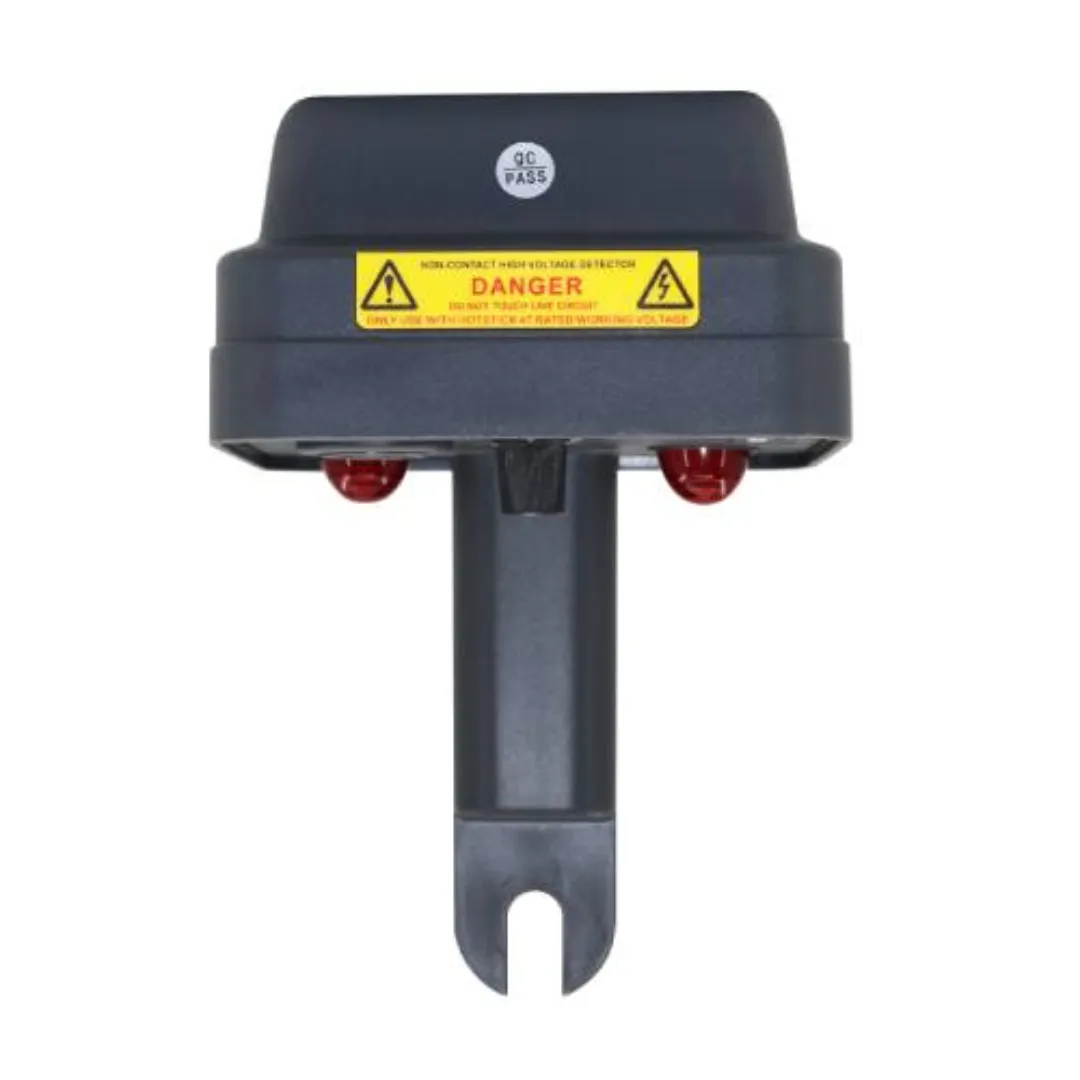

HIGH VOLTAGE DETECTOR ( 220V~500 KV ) ( HTC – HP-500 )

Description

The HTC HP‑500 High Voltage Detector is an advanced non‑contact safety instrument engineered for professionals working around live electrical systems—from low-voltage distribution to ultra–high-voltage transmission lines up to 500 kV. Designed for utility engineers, substation technicians, and field inspectors, this robust detector delivers fast, reliable voltage presence indication through manual range selection, making it ideal for live-line verification, fault tracing, and preventive safety inspections in demanding environments.

Voltage detection spans nine manual selectable ranges: 240 V, 3.3 kV, 11 kV, 33 kV, 66 kV, 110 kV, 220 kV, 330 kV, and 500 kV. The user rotates the range switch to match expected voltage level and simply brings the LED tip close to the conductor or equipment under test. When voltage exceeds the selected threshold, the unit emits both a bright LED flash and an audible buzzer—ensuring unmistakable detection even in noisy outdoor or industrial conditions.

Built with durability in mind, the HP‑500 meets IP65 protection standards, making it dust-tight and water-spray resistant—ideal for harsh outdoor installations or utility zones. It also features robust shockproof construction to withstand field rigors. The device is compatible with standard insulating rods, allowing safe operation from a distance when inspecting overhead conductors or live equipment.

Safety is paramount: the HP‑500 conducts a self-check at startup in Test mode, confirming both buzzer and LED functionality before detecting live application. The insulating rod must be properly attached before testing to ensure operator safety, as direct contact with the device is prohibited when it is active. Low-battery indication triggers when battery voltage drops near 5.5 V—ensuring reliable performance throughout field use.

Rated for frequency ranges between 40 Hz and 70 Hz, the HP‑500 performs across both standard power grid and industrial-frequency applications. Its maximum current draw is approximately 65 mA, powered by a single 9 V (6F22) battery housed securely in the unit. At a size of 115 mm × 15 mm × 69 mm and weight around 365 g including battery, it is lightweight and ergonomically designed for handheld or rod-mounted use.

Performance-wise, the HP‑500 provides a detection reminder distance of approximately 5 cm at 240 V, and up to 20 cm at higher kV levels—the closer the device tip, the more reliable the detection. This guidance helps to set safe testing distance while ensuring accurate voltage presence indication.

Technical specifications are comprehensive:

• Voltage Levels: Manual selection from 240 V to 500 kV

• Frequency Range: 40–70 Hz

• Visual/Audio Alerts: LED flash and buzzer when voltage exceeds the selected range

• Protection and Safety: IP65 rating; shockproof structure; requires insulating rod for safe use

• Power Source: 9 V battery; low-battery notification; max current ~65 mA

• Operating Conditions: –10 °C to +50 °C and relative humidity below 85%

• Storage Conditions: –15 °C to +55 °C with up to 90% RH

• Safety Compliances: EMC standards EN 61326‑1, EN 61000‑4‑2/-3/-8

• Dimensions/Weight: approx. 115 × 15 × 69 mm; 365 g including battery

In real-world use, the HP‑500 is vital for:

• Transmission line inspections, enabling non-contact voltage awareness at kV levels

• Substation safety verification, confirming presence of voltage or safe shutdown

• Cable tracking and high-voltage fault detection, identifying energized conductors without excavation

• Overhead line maintenance, ensuring technician safety before working near conductors

• Utility infrastructure testing, offering a compact solution for live voltage presence confirmation in field environments

The combination of range flexibility (240 V – 500 kV), manual selection of thresholds, IP65-rated construction, and visual/audible feedback makes the HP‑500 a standout tool for utility-grade voltage detection. Its ability to operate reliably in diverse outdoor climates and under refrigeration or high humidity environments adds to its dependability.

Summary of Key Features:

• Wide detection range: 240 V to 500 kV AC using manual selection

• Clear alerts: LED flash and buzzer for confirmed voltage detection

• Robust design: IP65-rated housing and shockproof structure for high‑voltage field conditions

• Self-check function before each use to verify readiness

• Low‑battery warning to prevent failures during critical checks

• Compatibility: Useable with standard insulating rods for safe distance operation

• Compact and portable: Ideal for overhead or substation testing

• Severe environment performance: Reliable from –10 °C to +50 °C and high humidity zones

Available as a reliable standalone detection device, the HP‑500 comes complete with a battery, test mode switch, voltage range selector, and user guide. It is intended for professionals who require a straightforward, high-voltage safety device for daily live-line confirmations.

In summary, the HTC HP‑500 Non‑Contact High Voltage Detector is a precision safety instrument offering comprehensive coverage from low-voltage systems to ultra-high voltage lines. Combining manual range selection, clear audible and visual indicators, rugged construction, and compliance with international EMC standards, it provides a trusted solution for ensuring safe operation around energized electrical conductors. Whether you’re working on transmission lines, substation equipment, or cable networks, the HP‑500 enhances electrical safety by ensuring fast and accurate live detection before any contact is made.
