Multimeter Test Lead ( HTC – TL-2 )

Description

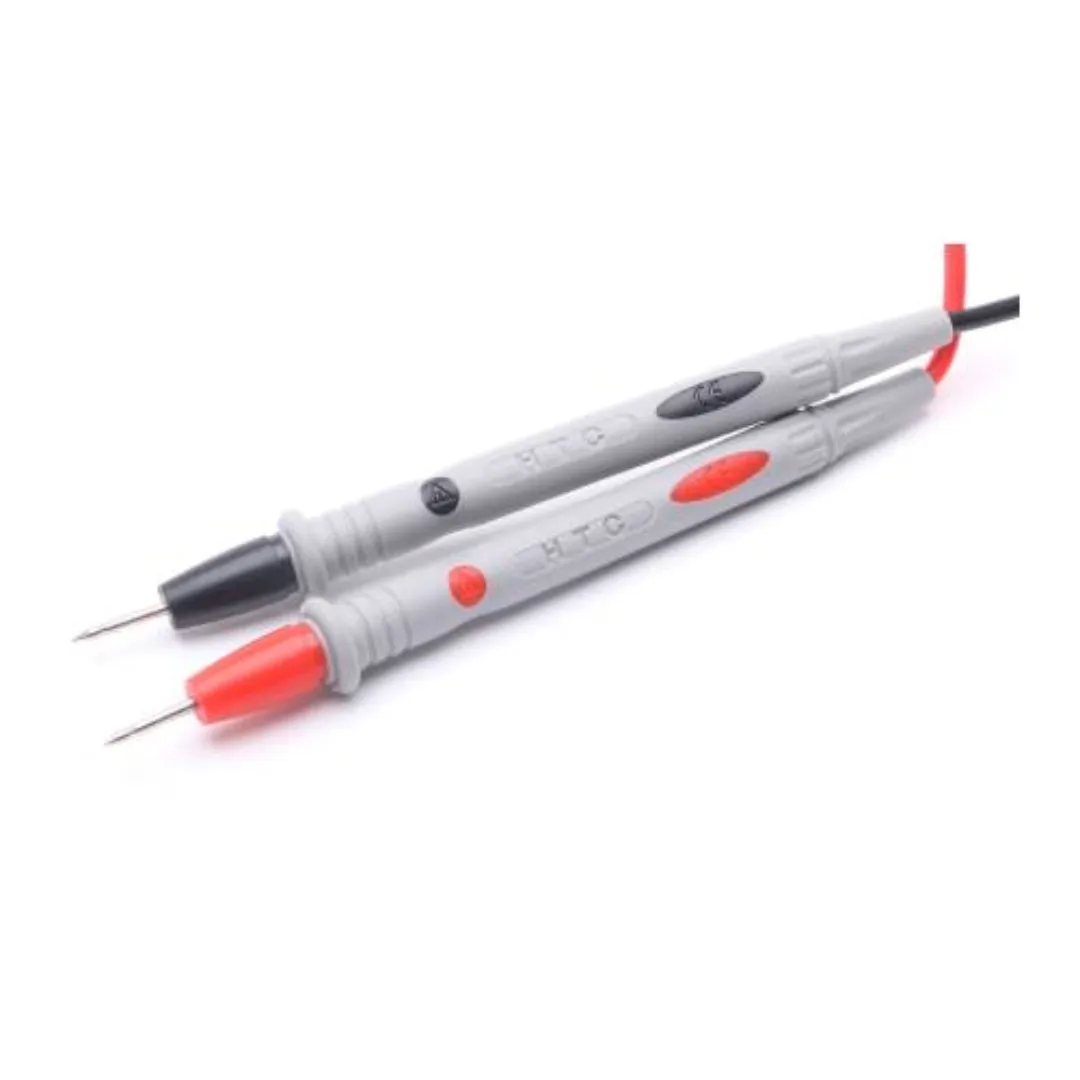

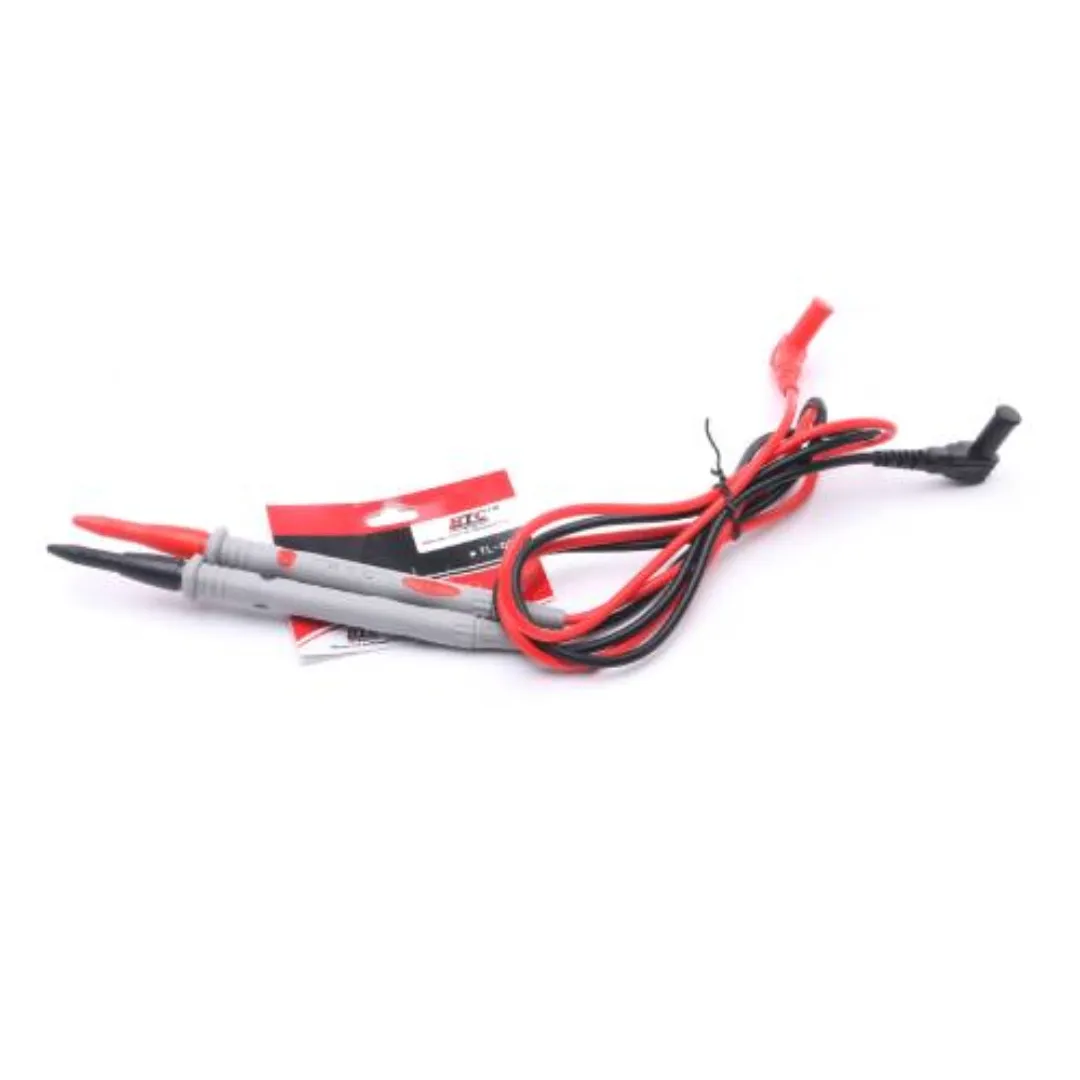

HTC TL-2 Test Lead — Robust, Safe, and Accurate Lead for Multimeter & Electrical Testing

The HTC TL-2 Test Lead is a high-quality accessory designed to provide reliable, safe, and accurate connection between your multimeter or measuring instrument and the circuitry under test. Built to serve professionals, technicians, hobbyists, and field service engineers alike, this test lead combines safety ratings, durable insulation, and real-world usability in one compact cable. Whether you’re working in industrial environments, labs, workshops, or doing periodic electrical maintenance, the TL-2 offers the quality you need for confidence in every measurement.

Key Features & Functional Highlights

Here are the core technical attributes and design highlights of the TL-2 Test Lead:

• Double Insulation
  The TL-2 is built with double insulation, which means there are two layers of insulation between the conductor and the environment. This improves safety and reduces risk in case of wear or damage to one insulation layer. It also helps withstand voltage stress and provides better protection for the user.

• Teflon Tape Insulation
  The cable uses Teflon (PTFE)-tape wrapping around its insulation. Teflon insulative materials are known for high thermal resistance, chemical inertness, flexibility, low aging, and resistance to abrasion. Thanks to this, the TL-2 can sustain higher ambient or conductor heating conditions without degrading its insulation or introducing safety hazards.

• Length of 100 cm
  With approximately 1 meter (100 cm) cable length, the TL-2 gives enough slack to comfortably connect test points without causing tension or pull on components. It is long enough for many common tasks — reaching control panels, machinery, measurement points — while still being manageable for storage.

• Voltage & Category Rating: CAT III 1000 V
  The test lead is rated for Category III service up to 1000 V. CAT III typically refers to fixed installations like distribution panels, three-phase loads, motors, equipment installations, etc. The 1000 V rating means it is suitable for high-voltage installations and more demanding environments than simple CAT II leads.

• Current Rating: 10 A
  The lead is rated to carry currents up to 10 Amperes, allowing measurement of fairly high currents (for test leads). Of course, the multimeter and connectors used must also support such currents. The rating ensures that the lead itself doesn’t suffer overheating or damage under higher loads.

• Temperature Tolerance
  The insulation can resist high temperature up to 260 °C. This is significantly higher than typical PVC insulated leads, which often degrade or melt at lower temps. For applications near heated components, high-ambient settings, or repeated heat exposure (e.g. near soldering, near motors etc.), this heat tolerance extends lifespan and safety.

• Standard Multimeter Compatibility
  The TL-2 uses standard connectors (banana-plug ends) that fit most multimeters. This includes both bench and handheld meters, as long as they accept 4 mm banana plugs / compatible sockets. The connectors are engineered to maintain good contact and minimize contact resistance—important for precision in measurements.

• Physical Build & Flexibility
  With the length and insulation type, the cable is flexible enough to get around obstacles, machine frames, enclosures, or tight panel interiors. The insulation and cable diameter are balanced to provide both flexibility and robustness.

Technical Specifications at a Glance

Here is a summary of the important specs, which help determine how and where you can use the TL-2 lead:

Real-World Applications & Use Cases

Because of its rating, build, and durability, the TL-2 Test Lead is suited for a wide array of applications. Here are some typical scenarios and how the TL-2 adds value in each:

1. Industrial Panel & Equipment Testing
   When checking voltage or currents in switchgear, distribution panels, motor starters, contactors, control cabinets, etc., you need leads that can safely handle higher voltages and currents, while being insulated and flexibly long to reach across enclosures. TL-2 meets these needs.

2. Field Maintenance & Service Tasks
   Electricians or maintenance technicians moving between machines or installations will appreciate the lead’s length, its ability to handle high temperature, and robustness. It’s less likely to get damaged when pulling around tight corners or near hot surfaces.

3. Laboratory and R&D Environments
   In labs, sometimes you need to connect to high-voltage sources for testing or calibration. The accurate, clean connection the TL-2 provides (low contact resistance, good insulation) helps maintain measurement accuracy. The heat-resistance allows use near heat generating test apparatus.

4. Automotive & High Current Testing
   When checking starter motors, alternators, heavy wiring harnesses or battery connections, tests may draw several amps. While handheld meters often limit current, having a lead rated for 10 A ensures safety for measurement tasks near that range (provided the meter is capable).

5. Electrical Safety Testing / Building Inspection
   Inspectors testing wiring, checking insulation / continuity, or voltage drops in long runs will benefit from a reliable lead. CAT III rating gives confidence in safety around fixed wiring or distribution lines.

6. DIY & Hobbyist Use
   Even in non-professional settings, if one has good quality leads, the measurement quality improves. For example, checking solar panel outputs, battery chargers, or power supplies. Using a lead that doesn’t distort readings under load or degrade quickly means better reliability.

Benefits & Why the TL-2 is a Good Choice

Here are the advantages the TL-2 offers compared to more basic or lower spec test leads:

• Enhanced Safety: The double insulation and high voltage rating reduce risk of accidents when dealing with high voltages or unexpected voltage surges.

• Durability Under Heat: Teflon insulation and high temp rating means lower chance of insulation melting, becoming brittle, or failing in heat.

• Appropriate Current Capacity: Many leads are rated only for small currents; with 10 A rating, the TL-2 can be used in somewhat heavier duty measurement tasks, reducing the need to switch leads.

• Flexibility & Reach: Length gives reach; flexibility helps in cramped or awkward test setups.

• Better Accuracy / Less Error: Good connectors, better insulation, stable conductor material all help reduce measurement error from lead resistance, contact resistance, or insulation heating.

• Long-Term Value: Because it’s built tougher, the TL-2 will likely last longer, resist wear and tear, saving frequent replacements.

Considerations & Best Practices for Safe / Optimal Use

To get the best performance and maintain safety, users should follow these practices:

• Check Compatibility with Your Multimeter: Ensure your meter supports 10 A leads; some meters have separate port for high current. Using the wrong port can overload lead or meter.

• Inspect Before Use: Look for any signs of damage (nicks, cuts, burned insulation), especially if used around heat sources.

• Keep Contact Points Clean: Banana plugs should be clean, secure, without corrosion or looseness—poor contact raises resistance, causes heating or erratic readings.

• Avoid Over-Bending or Sharp Bends: Even flexible insulation has stress limits. Sharp bends near the connector can damage conductor or cause insulation to tear.

• Don’t Expose to Extreme Moisture or Chemical Exposure: While insulation is robust, exposure to oil, solvents, water might degrade insulation or connector plating. Clean and dry appropriately.

• Use Within Temperature Limits: Though rated up to 260°C for the insulation, operating environment should not exceed safe handling conditions (for connectors, conductor core, etc.). Beware of combined heat + humidity or mechanical stress.

• Storage: Coil leads loosely; avoid tight wrapping that creates kinks; store in dry, moderate temperature place.

• Meter Calibration & Lead Resistance: For precision or critical measurements, account for lead resistance. Lower connectivity errors and ensure lead resistance is stable. Use leads with known low resistance.

Detailed Spec Summary

Example Scenarios

Here are a few example workflows showing how the TL-2 adds value in context:

• Testing a Motor Drive Panel
  An electrician needs to measure voltage at a terminal 1 meter inside a drive cabinet. Using TL-2, he inserts banana plugs, reaches inside with lead slack, measures safely without touching live parts or stretching. Because of good insulation and rating, he is confident under CAT III environment.

• Checking Battery Chargers / Automotive Alternator
  While vehicle is running, checking alternator output or battery voltage under load. Because lead carries current safely, he gets accurate reading without heating or lead failure.

• Lab Power Supply Measurements
  In a bench with multiple power supplies, measuring voltage/current across power rails. The TL-2 lead’s stability, insulation and connector quality improve measurement reliability, especially when measuring low voltage or sensitive circuits.

• Regular Safety Inspections
  In a factory or facility, periodic inspections of wiring, junction boxes, and fixed installations require leads able to handle high potential voltage surges and be insulated well. The TL-2 is a rugged choice for such routine work with less risk of insulation failure.

Final Thoughts & Summary

The HTC TL-2 Test Lead is a dependable, professional-grade accessory designed for accurate electrical measurements. Overall, its strength lies in a robust combination of safety, insulation, current handling, and ease of use:

• Double insulation + high temperature rated insulation keeps it safe even under harsh conditions.

• CAT III 1000 V, 10 A rating broadens applicability into more demanding jobs.

• The 1 m length is practical for many tasks without excess tangling.

• Connector quality and build make results stable and dependable.

If your measurements involve higher voltages, tougher environments, or you want leads that last and maintain performance, the TL-2 is an excellent choice.
